HUBBELL WIRING DEVICE-KELLEMS

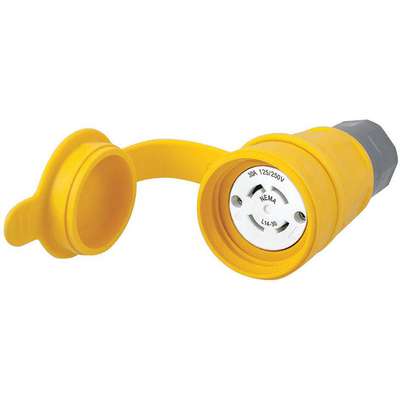

Hubbell Wiring Device-Kellems 30 Amp Industrial Grade Watertight Locking Connector, L14-30R NEMA Configuration, Yellow
#925967-7Pkg Qty: 1
$198.12 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Antimicrobial
No
Brand
HUBBELL WIRING DEVICE-KELLEMS
Color Family
Yellow
Cord Size
0.375 in to 1.125 in
Corrosion Resistant
Yes
Grade
Industrial/Commercial
Horsepower
2 hp
Housing Material
Thermoplastic Elastomer
IP Rating
IP69K
Item
Watertight Locking Connector
Mfr. Part Number
HBL29W74
NEMA Configuration - Plugs & Connectors
L14-30
NEMA Plug Configuration
L14-30R
Number of Poles
3
Number of Wires
4
Package Quantity
1
Phase
Single
Power Indicator
No
Shipping Weight
1 lb.
Voltage
125/250VAC
Wiring Style
Standard
Amperage
30 A
Mfr. Part Number
HBL29W74
Antimicrobial
No
NEMA Configuration - Plugs & Connectors
L14-30
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L14-30R
Color Family
Yellow
Number of Poles
3
Cord Size
0.375 in to 1.125 in
Number of Wires
4
Corrosion Resistant
Yes
Package Quantity
1
Grade
Industrial/Commercial
Phase
Single
Horsepower
2 hp
Power Indicator
No
Housing Material
Thermoplastic Elastomer
Shipping Weight
1 lb.
IP Rating
IP69K
Voltage
125/250VAC
Item
Watertight Locking Connector
Wiring Style
Standard
General
Amps
30 A
Amps - Plugs and Receptacles
30
Cap Type
Press-On Cap
Connection Orientation
Straight
Contact Material
Nickel-Plated Brass
Current Rating
30 A
Description
Twist Lock Watertight Connector
Grade - Plugs and Receptacles
Industrial
Housing Color
Yellow
Material
Thermoplastic Elastomer, Valox
Material of Construction
Thermoplastic Elastomer, Valox
Maximum Operating Temperature
60 °C
Maximum Wire Size
8 AWG
Minimum Operating Temperature
-40 °C
Minimum Wire Size
18 AWG
NEMA Rating
12, 4, 4X, 6, 6P
Outside Diameter
2.77 in.
Overall Length
2.77 in.
Shrouded
Yes
Special Features
Corrosion Resistant
Standards
ANSI
UL 94 Flammability Rating
HB
Voltage Rating
125/250V AC
Wire Connection Type
Screw Terminals
Amps
30 A
Maximum Wire Size
8 AWG
Amps - Plugs and Receptacles
30
Minimum Operating Temperature
-40 °C
Cap Type
Press-On Cap
Minimum Wire Size
18 AWG
Connection Orientation
Straight
NEMA Rating
12, 4, 4X, 6, 6P
Contact Material
Nickel-Plated Brass
Outside Diameter
2.77 in.
Current Rating
30 A
Overall Length
2.77 in.
Description
Twist Lock Watertight Connector
Shrouded
Yes
Grade - Plugs and Receptacles
Industrial
Special Features
Corrosion Resistant
Housing Color
Yellow
Standards
ANSI
Material
Thermoplastic Elastomer, Valox
UL 94 Flammability Rating
HB
Material of Construction
Thermoplastic Elastomer, Valox
Voltage Rating
125/250V AC
Maximum Operating Temperature
60 °C
Wire Connection Type
Screw Terminals
Product Description

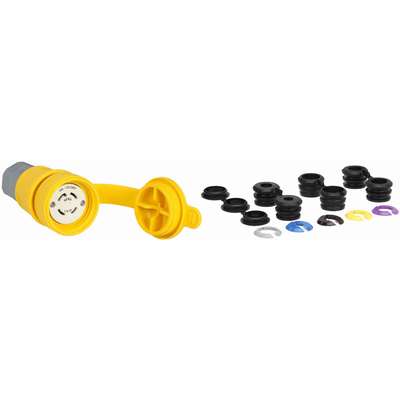

Features keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
