IFM

IFM Cordset, End 1 Number of Pins: 5, End 2 Gender and Plug End: Bare Wire, End 1 Keyway: Single

Hover over image to magnify

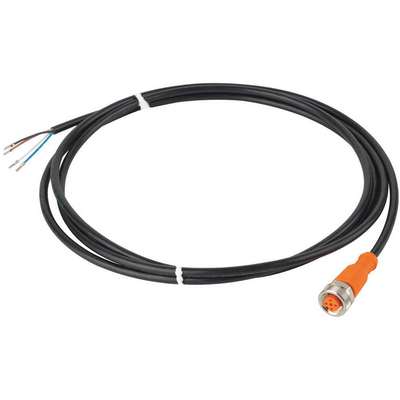

Cordset,5 Pin,Receptacle,Female
Cordset,5 Pin,Receptacle,Female

#925952-7 | Pkg Qty: 1

$13.11 pkg | $13.11 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
4 A
Jacket Type
TPU
Brand
IFM
Maximum Amps
4
Cable Length
2 m
Maximum Operating Temperature
167 deg. F
Color Family
Black
Maximum Voltage
250 VAC/300 VDC
End 1 Connection Type
Receptacle
Mfr. Part Number
EVC001
End 1 Gender
Female
Minimum Operating Temperature
-13 deg. F
End 1 Gender/Plug End
Female Straight
Number of Conductors
4
End 1 Keyway
Single
Number of Pins
5
End 1 Number of Pins
5
Number of Wires
4
End 1 Plug End
Straight
Package Quantity
1
End 1 Thread
M12
Plug/Connector Type
M12
End 2 Connection Type
Bare Wire
Shipping Weight
.2 lb.
End 2 Gender/Plug End
Bare Wire
Temperature Range
-25 deg. F to 75 deg. F
IP Rating
65,67,68,69K
Type
Straight
Item
Cordset
Voltage (AC)
250
Jacket Color
Black
Voltage (DC)
300
Jacket Material
TPU
Wire Size
22 AWG
General
Cable Jacket Material
TPU
End 2 Gender and Plug End
Bare Wire
Cordset Configuration
M12 Female Straight X Bare Wire
Features
Gold-Plated Contacts
Cordset Type
Single-Ended
Plug or Connector Type
M12
End 1 Gender and Plug End
Female Straight
Standards
cRUus Approval
End 1 Mounting Orientation
Straight
Threads
12mm
End 1 Number of Keyways
1

Product Description

This cordset is designed with a lock-in-place coupling nut that secures the cordset to a quick disconnect sensor and resists high levels of shock and vibration. Its high-flex, PUR-jacketed cable is rated to over 5 million flex cycles and features a mechanical end-stop insert that helps to prevent damage to the O-ring. The jacket also helps to resist harsh conditions in industrial automation and oils and coolants. Silicon and halogen free.
