CLE-LINE

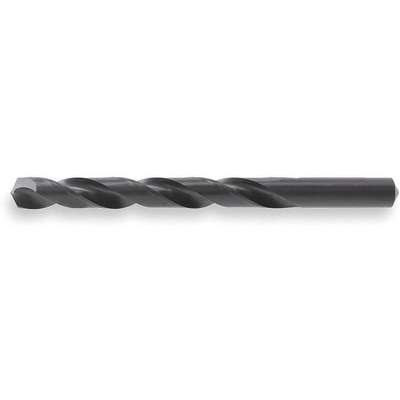

Jobber Drill Bit, 27/64", High Speed Steel, Black Oxide, List Number 1801

Hover over image to magnify
Jobber Bit,27/64In,High Speed
Jobber Bit,27/64In,High Speed
Jobber Drill Bit, 27/64", High Speed Steel, Black Oxide, List Number 1801 Video
Jobber Drill Bit, 27/64", High Speed Steel, Black Oxide, List Number 1801 Video

#925843-4 | Pkg Qty: 1

$9.53 pkg | $9.53 ea

Technical Specifications

Key Specifications
Brand
CLE-LINE
Item
Jobber Length Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
High Speed Steel
Cutting Direction
Right
List Number
1801
Cutting Direction
Right Hand
Maximum Drilling Depth
1-11/16 in.
Decimal Equivalent
0.4219
Mfr. Part Number
C23148
Depth x Diameter Ratio
4xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
5-3/8 in.
Drill Bit Finish
Black Oxide
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
135 deg.
Drill Bit Point Angle
135 deg.
Point Type
Split Point
Drill Bit Size
27/64 in.
Series
1801
Drill Point Length
0.0874 in.
Shank Diameter
27/64 in.
Finish
Black Oxide
Shank Length
1-7/16 in.
Flute Length
3-15/16 in.
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
0.12 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
28
General
Application
For Alloy, Stainless And Tool Steels And Cast Iron
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Material Grade - Machining
High Performance
Depth:Dia. Ratio
4xD
Measurement System
Fractional Inch
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, P
Drill Bit Point Type
Split Point
Shank Dia.
27/64 in
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Type - Machining
Straight
Drill Length Class
Jobber Length
Standards
ASME B94.11M
Finish - Machining
Black Oxide

Product Description

These drill bits come in standard sizes expressed in fractional inches. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals. The bits' spiral flutes evacuate chips as the bits drill into a workpiece. These bits have a straight shank that installs into a drill chuck or similar toolholder.

Documents

Drill Bits Overview
Item Barcode
9258434
Jobber Bit,27/64In,High Speed
  Name Item Description
Grainger Dropship Grainger Dropship 2BR32 Jobber Bit, 27/64In,High
UNSPSC CODES UNSPSC CODES 23241605
