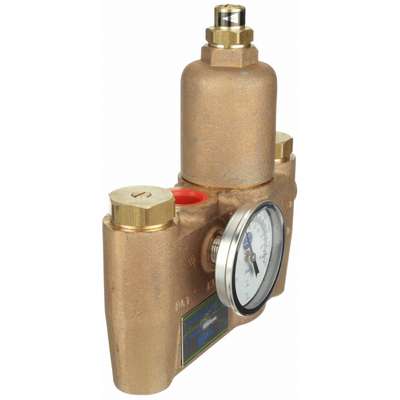

Mixing Valve: Bronze, 26 gpm Flow Rate, FNPT Inlet, FNPT Outlet, 3/4 in Inlet Size

Name: Mixing Valve: Bronze, 26 gpm Flow Rate, FNPT Inlet, FNPT Outlet, 3/4 in Inlet Size
Brand: BRADLEY
SKU: 9258159
Price: 1263.89 USD
Availability: InStock

Hover over image to magnify

#925815-9 | Pkg Qty: 1

$1,263.89 pkg | $1,263.89 ea

Technical Specifications

Key Specifications

Body Material

Bronze

Outlet Size

1 in.

Brand

BRADLEY

Outlet Type

FNPT

Connection Type

Universal

Overall Height

22-3/4 in.

Inlet Size

3/4 in.

Overall Width

5-1/8 in.

Inlet Type

FNPT

Package Quantity

Item

Mixing Valve

Shipping Weight

20 lb.

Maximum Pressure

125 psi

Temperature Range (Deg. F)

65 to 95 deg. F

Mfr. Part Number

S19-2100

General

For Use With

Emergency Fixtures

Inlet Temperature (Hot)

180 Degrees F

Inlet Temperature (Cold)

120 Degrees to 140 Degrees F

Standards

ANSI Z358.1

Product Description

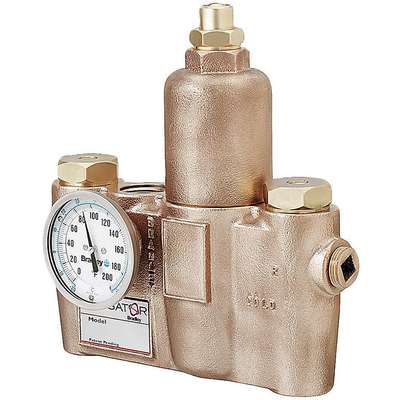

In the event of hot water supply failure, a single valve permits cold water bypass. The BRADLEY® thermostatic mixing valve blends hot and cold water to a comfortable flushing temperature. Liquid-filled thermostat maintains water temperature within ±3?F of desired temperature. If the cold water supply fails, the hot water shut-off automatically shuts off hot water supply to prevent risk of scalding.

Built-in strainer check stops prevent the exchange of cold and hot water supply and vice versa
Accommodates up to three eye washes or one eye/face wash
26 gpm at 30 psi

Compliance & Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
