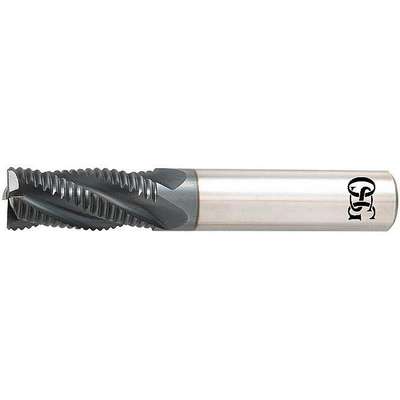

Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, TiAlN, HP400

Hover over image to magnify
End Mill, 1/4" Dia, 3/4" Cut,
End Mill, 1/4" Dia, 3/4" Cut,
Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, TiAlN, HP400 Video

#925793-9 | Pkg Qty: 1

$50.73 pkg | $50.73 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
OSG
Item
Square End Mill
Cast Iron Compatibility
Yes
Length of Cut
3/4 in.
Cutting Direction
Right
List Number
HP400
Cutting Type
Center
Mfr. Part Number
HP400-2500
Diameter
1/4 in.
Milling Diameter
1/4 in.
Dimension Type
Fractional Inch
Non Ferrous Compatability
No
End
Center Cutting
Number of Flutes
4
End Mill Application
Roughing/Finishing
Overall Length
2-1/2 in.
End Mill Cutting Type
Center Cutting
Package Quantity
1
End Mill Material
Carbide
Primary Material Application
Cast Iron, Nickel, Stainless Steel, Steel, Tool and Die Steel
End Style
Square
Series
HY-PRO(R) CARB
Finish
TiAlN
Shank Diameter
1/4 in.
Grade
High Performance
Shipping Weight
.07 lb.
Hardened Compatibility
Yes
Single End/Double End
Single End
Helix Angle
30 deg.
Type
Regular
General
Application
For Carbon Steel, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
1/4 in
End Mill Style
Square
Miniature End Mill
No
Finish - Machining
TiAlN
Primary Material Application ISO Code
K, M, P, S
Material - Machining
Carbide
Shank Dia.
1/4 in
Material Applications
Steel, Carbon Steel, Cast Iron, Inconel, Nickel, Stainless Steel
Shank Type - Machining
Straight
Material Grade - Machining
High Performance

Product Description

The TiAlN coating on these end mills withstands high temperatures and protects them from wear. It allows the end mills to be used at faster speeds than end mills with a bright finish, and it resists cracks and oxidation better than TiN or TiCN coatings.

High-performance carbide square end mills are designed to last longer and create a finer finish when used in their recommended, first-choice materials than general purpose end mills. They are used in production milling. Roughing/finishing end mills remove large amounts of material and create a smooth finish on the workpiece at the same time. Carbide end mills provide excellent wear resistance and heat resistance, and they are harder than high-speed steel, cobalt, or powdered-metal end mills. Also called square-nose end mills, square end mills have a square nose and are rotated against a piece of stock to create a flat-bottomed groove with 90° inside corners in milling tasks. They are used for counterboring, side and face milling, and milling square shoulders.
