EATON BUSSMANN

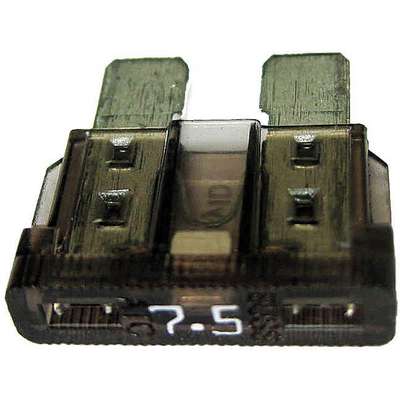

Eaton Bussmann 7-1/2A Fast Acting, Indicating Plastic Fuse with 32 VDC Voltage Rating; ATC-ID Series, Brown

Hover over image to magnify
Fuse,7-1/2A,Indicating,Bp/Atc,
Fuse,7-1/2A,Indicating,Bp/Atc,

#925782-8 | Pkg Qty: 2

$10.88 pkg | $5.44 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
Not Rated
Indicating
Yes
Amperage
7-1/2 A
Indicating / Nonindicating
Indicating
Body Material
Plastic
Interrupt Rating
1kA at 32 VDC
Body Style
Blade
Interrupting Rating
1kA at 32VDC
Brand
EATON BUSSMANN
Item
Fuse
Class
BP
Length
3/4 in.
Color Code
Brown
Meets Standards
UL Recognized Guide JFHR2, File E56412
Color Family
Brown
Mfr. Part Number
BP/ATC-7-1/2ID
DC Voltage Rating
32 VDC
Package Quantity
2
Depth
7/32 in.
Rejection / Nonrejection
Nonrejection
Element
Single
Series
Atc-Id
Functionally Equal To
Littelfuse 257, ATO, Mersen/Ferraz Shawmut AF
Shipping Weight
.02 lb.
Fuse Amps
7-1/2A
Speed
Fast Acting
Fuse Speed
Fast Acting
Type
Automotive
Fuse Type
Automotive
Voltage Rating
32 VDC
Fuse Voltage Rating
32 VDC
Width
3/4 in.
General
Compatible Fuse Block Series
15600, ATC, BP, HHC, HHD, HHF, HHG
Fuse Size
3/4 in L x 3/4 in W x 13/64 in D
Equivalent Series
ATC-ID
Visual Indication
Indicating
Fits Fuse Block Style
Nonrejection

Product Description

Fast-acting, indicating automotive blade fuses open within seconds of being exposed to overloads and short circuits. Also called fast-blow blade fuses, they are highly sensitive to changes in current flow and don't tolerate temporary overload currents or power surges. They have a visual indicator to make it easier to identify blown fuses for replacement.

Automotive blade fuses are the most commonly used type of automotive fuse for protecting electrical systems and components against overcurrent. These 32VDC plug-in style fuses have a plastic housing with two blade-style contacts that fit into compatible fuse block or holder. Their housing is usually color-coded by amperage rating to help prevent installation of a mismatched fuse. The housing is also transparent for checking whether the fuse element is intact or has melted.
