Item # Description Pkg Qty Price Weight
Per Pkg
925758-1 Solenoid Valve,120VAC,10.1,H, 1
Login to See Pricing
5.35 lb
Boxes:

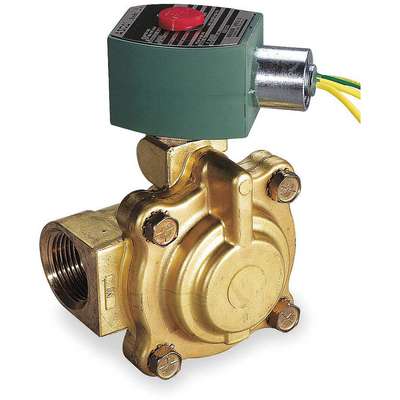

Solenoid Valve,120VAC,10.1,H,

Steam and Hot Water Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed Valve Configurati

  • Shipping Weight 5.35 lbs.
Country of Origin Mexico Country of Origin is subject to change.
Note: Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order. More


  • Item Steam and Hot Water Solenoid Valve
  • Solenoid Valve Product Group Steam and Hot Water Solenoid Valve
  • Valve Ways and Positions 2-Way/2-Position
  • Valve Configuration Normally Closed
  • Media - Valves Hot Water,Steam
  • Pipe Size - Valves 1-1/4"
  • Min. Operating Pressure Differential 5 psi
  • Max. Operating Pressure Differential Hot Water 150 psi
  • Max. Operating Pressure Differential Steam 125 psi
  • Environmental Rating - Valves Indoor,Outdoor
  • Voltage 120VAC
  • Coefficient of Volume 15.00
  • Body Material - Valves Brass
  • Coil Insulation Class H
  • Orifice Dia. 1-1/8"
  • NEMA Rating 1, 2, 3, 3S, 4, 4X
  • Max. Fluid Temp. Hot Water 210 Degrees F
  • Coil Enclosure Watertight No Junction Box
  • Max. Fluid Temp. Steam 353 Degrees F
  • Electrical Connections 1/2" Conduit w/18" Leads
  • Watts 10.1
  • Ambient Temp. Range 125 Degrees F Degrees F
  • Hz 60/50
  • Overall Length 3-21/32"
  • Overall Width 3-9/16"
  • Overall Height 5-13/16"
  • Center Line Pipe Center Size 4-3/32"

Ambient Temp Range 125°F
Body Material Brass
Coefficient of Volume 15
Configuration Normally Closed
Electrical Connections 1/2 in. Conduit w/18 in. Leads
Hz 60/50
Item Steam and Hot Water Solenoid Valve
Media Type Hot Water, Steam
NEMA Rating 1, 2, 3, 3S, 4, 4X
Orifice Dia. 1-1/8 in.
Overall Height 5-13/16 in.
Overall Length 3-21/32 in.
Overall Width 3-9/16 in.
Pipe Size 1-1/4 in.
Valve Design 2-Way/2-Position
Voltage 120 VAC
Brand REDHAT
