Item # Description Pkg Qty Price Weight
Per Pkg
925741-4 Butt Hinge,Steel,125.0 Lb. 1
Login to See Pricing
1.06 lb

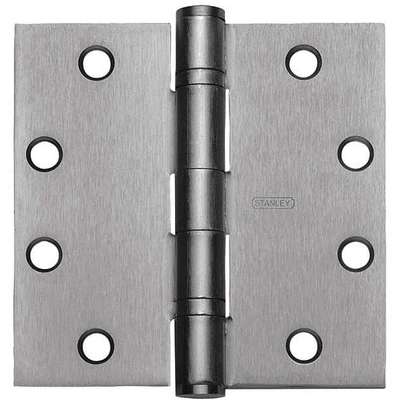

Butt Hinge,Steel,125.0 Lb.

4-1/2" x 1-1/2" Butt Hinge with Satin Nickel Finish, Full Mortise Mounting, Square Corners

  • Shipping Weight 1.06 lbs.
Country of Origin China Country of Origin is subject to change.
Note: Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order. More

  • Item Butt Hinge
  • Material Steel
  • Finish Satin Nickel
  • Load Capacity 125.0 lb.
  • Holes per Leaf 4
  • Ligature Resistant No
  • Range of Motion 270 Degrees
  • Orientation Non Handed
  • Door Leaf Height 4-1/2"
  • Frame Leaf Height 4-1/2"
  • Door Leaf Width 2"
  • Frame Leaf Width 1-1/2"
  • Door Leaf Thickness 0.134"
  • Frame Leaf Thickness 0.190"
  • Required Door Thickness 1-3/8" to 3"
  • Bearing Type Ball
  • Corners Square
  • Hardware Included
  • Hinge Number #1 Heavy Duty
  • Mounting Full Mortise
  • Number of Wires 0
  • Overall Knuckle Height 7/16"
  • Pin Dia. 5/16"
  • Pin Material Stainless Steel
  • Pin Type Removable
  • Standards ANSI/BHMA A156.1, Fire Rated

Loading Items...
Grainger Dropship Grainger Dropship 53DY51
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Butt Hinge, Steel,125.0
Item Barcode
