LEESON

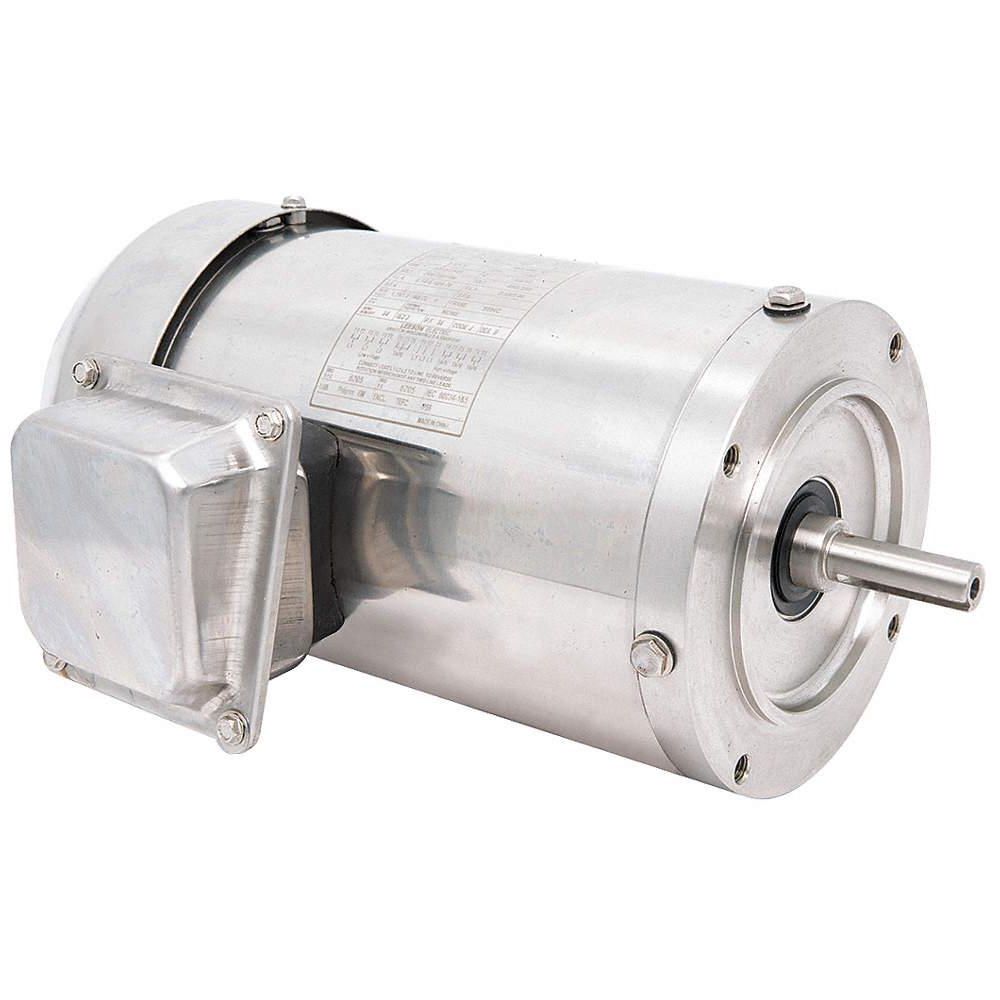

Leeson Washdown Motor, 2 HP, Unfinished Finish, 3-Phase, Nameplate RPM 3,450, Voltage 208-230/460V AC
Hover over image to magnify
#925695-8 | Pkg Qty: 1
$1,107.83 pkg | $1,107.83 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LEESON
Mfr. Warranty Length
1 yr.
Duty Cycle
Continuous
Motor Design
3-Phase
Finish
Unfinished
Nameplate RPM
3450
Frame
56HC
Overall Length
13-3/4 in.
Frame Material
Stainless Steel
Pack Quantity
1
Full Load Amps
5.3-5.0/2.5
Phase
Three
Hz
60/50
Shaft Length
2-1/16 in.
Item
Washdown Motor
Shaft Material
Stainless Steel
Length Less Shaft
11-7/8 in.
Shipping Weight
46.9 lb.
Mfr. Part Number
191562
Voltage
208-230/460 VAC
General
Body Dia.
6.5 in
Motor Service Factor
1.15
Bolt Circle Dia.
5 7/8 in
Motor Shaft Design
Keyed
CC Number
CC005A
Motor Shaft Rotation
CCW, CW
Conduit Box Location
Exterior
Motor Thermal Protection
None
Full Load Amps @ 50Hz
5.8-5.4/2.5
NEMA Design
B
Green Certification or Other Recognition
NEMA Premium® Rated
No. of Speeds
1
HP
2
Nominal Efficiency
86.6 %
HP @ 50Hz
2
RPM @ 50Hz
3,450
Ins. Class
F
RPM Range
3,001-3,600
Max. Ambient Temp.
40 °C
Service Factor @ 50Hz
1.15
Motor Application
Washdown
Shaft Dia.
5/8 in
Motor Bearings
Ball
Standards
BISSC Approved, CE, CSA Certified, UL Recognized
Motor Efficiency Group
NEMA Premium Efficient
Usable @ 200V
No
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Usable @ 208V
Yes
Motor Frame Material
Stainless Steel
Voltage @ 50Hz
460V AC
Motor Mounting Position
Horizontal
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Motor Mounting Type
Rigid Base
Product Description
Stainless steel washdown AC motors have exterior components of 300 series stainless steel to provide maximum corrosion resistance in severe-duty and washdown environments. The motors’ exterior is completely paint- and coating-free and sealed against moisture and condensation to protect internal components.
Documents
Item Barcode
Washdown Motor,2 Hp,3450 Rpm
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48ZH88 | Washdown Motor,2 HP, |
 | UNSPSC CODES | 26101115 | |
 | VMRS (ATA) CODES | 053-006-009 | Washdown Motor,2 HP, |
