DAYTON

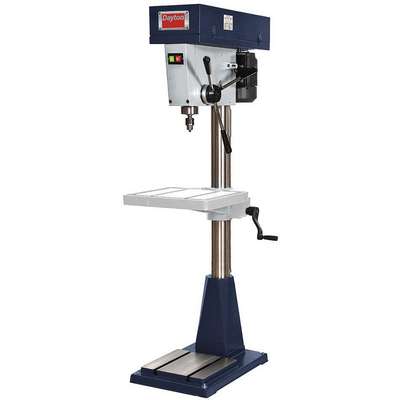

Dayton 1 Motor HP Floor Drill Press, Belt Drive Type, 20" Swing, 120/240 Voltage

Hover over image to magnify
Floor Drill Press,Belt,20",1
Floor Drill Press,Belt,20",1

#925616-1 | Pkg Qty: 1

$3,719.48 pkg | $3,719.48 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Application
Production Drill Press
Package Quantity
1
Brand
DAYTON
Phase
Single-Phase
Drive Type
Belt
Shipping Weight
248 lb.
Horsepower
1 HP
Speed Control
Fixed
Item
Floor Drill Press
Swing
20 in.
Mfr. Part Number
49G986
Voltage
120/240
Overall Depth
32-1/2 in.
General
Chuck Capacity
1/2 in
Maximum Spindle-to-Table Height
26 3/8 in
Chuck Style
Keyed
Minimum Spindle Speed
140 RPM
Column Diameter
4 in
Nominal Voltage
115/230V AC
Current
16/8 A
Quill Diameter
2 1/8 in
Drill Press Application
Boring, Countersinking, Drilling, Reaming
Speed Adjustment
Step Pulley
Drill Press Type
Floor Stand
Speed Range
140 to 2,600 RPM
Drill Spindle Travel
5 in - 6 in
Spindle Speed Range
140 RPM - 2,600 RPM
Drilling Capacity in Cast Iron
1 1/4 in
Spindle Travel
5 in
Drilling Capacity in Steel
1 in
Spindle-to-Column Distance
10 in
Includes
Different Spindle Speed Ranges, Drill Chuck and Arbor, LED, Quick Belt Tension Release, Spindle Depth Stop
Table Length
15 in
Maximum Overall Height
70 1/2 in
Table Slot
Yes
Maximum Spindle Speed
2,600 RPM
Table Slot Width
5/8 in
Maximum Spindle-to-Base Height
44 1/2 in
Table Width
13 in

Product Description

Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper MT3, Motor HP 1 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/4 in, Drilling Capacity Wood Not Specified, Includes Quick Belt Tension Release, Spindle Depth Stop, Different Spindle Speed Ranges, LED, Drill Chuck and Arbor, Power Down Feed Included No, Voltage 120/240, Amps AC 16.0/8.0, Number of Speeds 12, Chuck Size 1/2 in, Spindle Speed 140 to 2600 rpm, Spindle Travel 5 in, Base Size 14-1/8 in x 13 in
