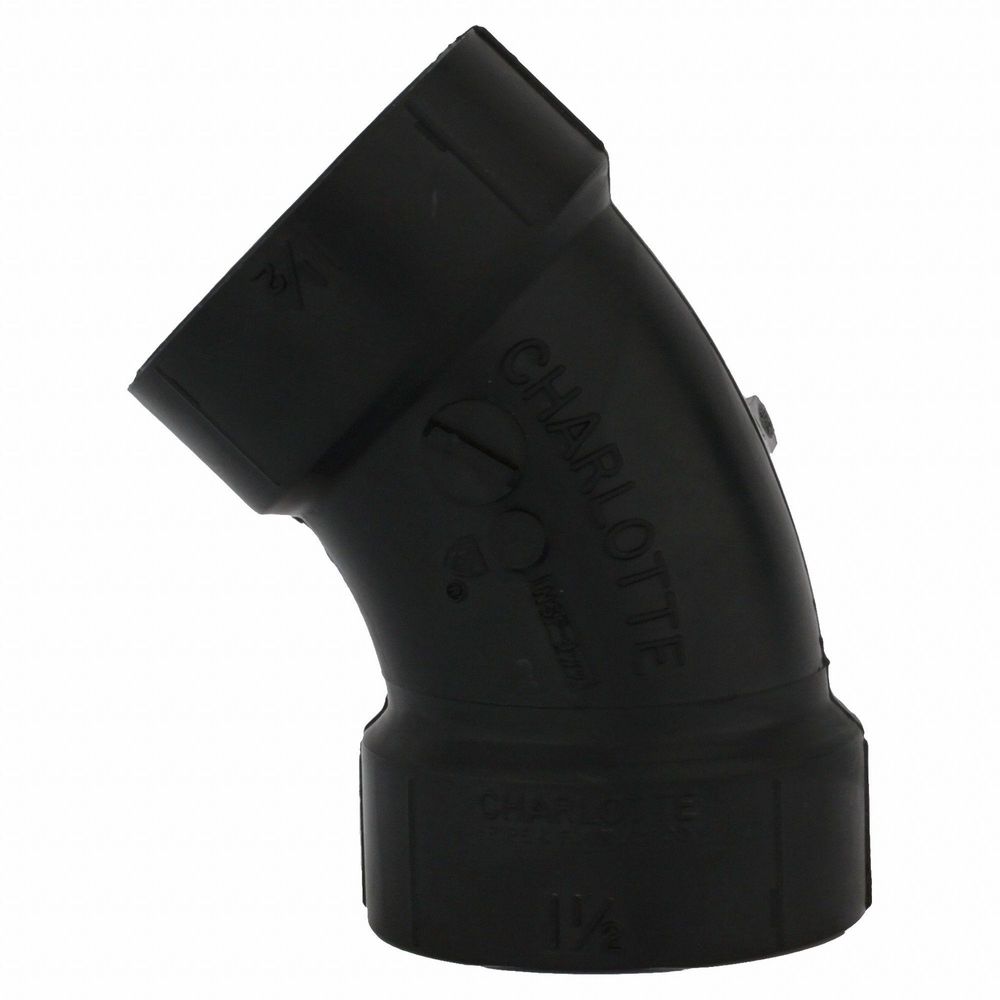

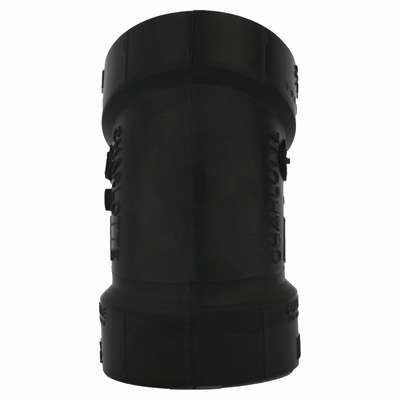

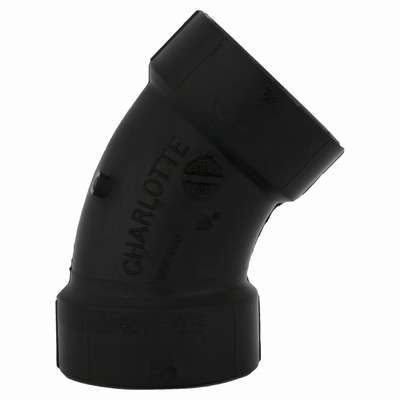

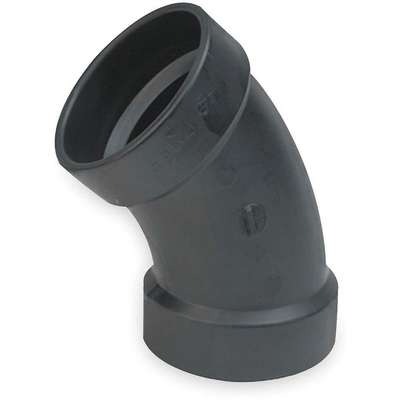

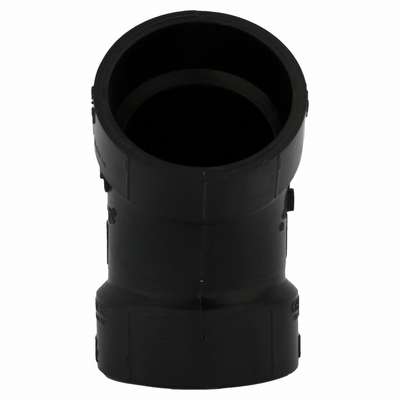

45° Elbow: 1 1/2 in x 1 1/2 in Fitting Pipe Size, Schedule 40, Female Socket x Female Socket, Black

Hover over image to magnify
45 Deg Elbow,1-1/2 In x 1-1/2
PI_Asset_1982911
PI_Asset_1987372
PI_Asset_1990402
PI_Asset_1992447
45 Deg Elbow,1-1/2 In x 1-1/2
PI_Asset_1982911
PI_Asset_1987372
PI_Asset_1990402
PI_Asset_1992447

#925581 | Pkg Qty: 1

$2.58 pkg | $2.58 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Angle
45 deg.
Item
Union Elbow
Body Material
ABS
Mfr. Part Number
1WJA1
Brand
APPROVED SUPPLIER
Package Quantity
1
Connection Type
Hub x Hub
Shipping Weight
.14 lb.
For Pipe Size
1-1/2 in.
General
Fitting Pipe Size
1 1/2 in x 1 1/2 in
Fitting Side B Outside Diameter
2 3/16 in
Fitting Side A Gender
Female
Fitting Side B Type
Socket
Fitting Side A Nominal Pipe Size
1 1/2 in
For Pipe Outside Diameter
1 7/8 in
Fitting Side A Outside Diameter
2 3/16 in
For Pipe Schedule
40
Fitting Side A Type
Socket
Low Lead Compliance Level
Not Compliant
Fitting Side B Gender
Female
Standards
Cell Class 32222 As Defined In ASTM D3965
Fitting Side B Nominal Pipe Size
1 1/2 in
Temp. Range
-20 Degrees to 140 Degrees F

Product Description

Socket x socket fittings, also called slip or hub fittings, include socket ends on all fitting connection ends. The socket ends fit over the end of an ABS (acrylonitrile butadiene styrene) pipe and require glue or adhesive to secure the connection.

Drain, waste, and vent (DWV) systems convey effluent streams, such as black water or gray water waste. ABS (acrylonitrile butadiene styrene) is an opaque thermoplastic polymer with high tensile strength and low temperature properties. ABS DWV fittings connect the same or different sizes of ABS pipe and use gravity to divert, divide, or return the flow of water and waste through the pipeline. DWV pipe and fittings are not for use in pressure applications. The smooth interior walls of ABS pipe and fittings resist physical impact, chemical corrosion, and scaling.
