SOLER & PALAU

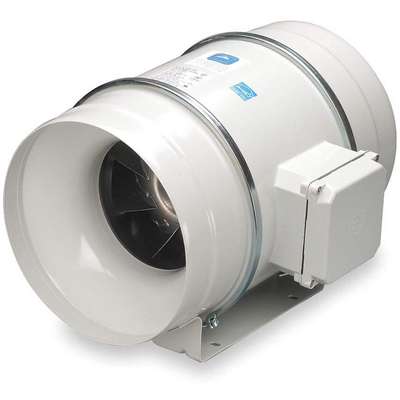

Soler & Palau In-Line Duct Fan: 754 cfm Max., 10 in Duct, 115 W, 120V AC, 1 Ph, IP44, Steel, 750 to 1,500 cfm
Hover over image to magnify
#925574-3 | Pkg Qty: 1
$583.13 pkg | $583.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
c-UL-US, Energy Star
Mfr. Part Number
TD-250
Bearing Type
Ball
Motor Enclosure
Totally Enclosed
Brand
SOLER & PALAU
Mounting Position
Horizontal or Vertical
Housing Diameter
10-3/4 in.
Number of Speeds
2
Housing Material
Metal
Package Quantity
1
Item
Mixed Flow Duct Fan
Shipping Weight
20.7 lb.
Length
11-1/2 in.
General
Airflow @ 0.000 in SP
754 cfm
Motor IP Rating
IP44
Airflow @ 0.000 in SP - Range
750 to 1,500 cfm
Motor Output Power
115 W
Airflow @ 0.000 in. SP - Range
0 to 999 cfm
Motor Speed
3,200 RPM
For Fan Type
In-Line Duct Fan
Nameplate Voltage
120V AC
Green Certification/Other Recognition
HVI® Certified
Nominal Voltage
120V AC
High-Efficiency Motor
No
Overall Dimensions H x W
7 5/8 in x 7 5/8 in
Includes
Mounting Bracket
Speed Controllable
Yes
Maximum Inlet Air Temperature
140 Degrees F
Product Description
Low-profile S&P TD-MIXVENT series mixed flow in-line duct fan delivers excellent airflow-to-pressure ratio. Motor-impeller assembly can be removed without interfering with attached ducting.
Expertly Selected Product Pairings
Item Barcode
Mixed Flow Duct Fan,10 In. Dia.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3CGA9 | Mixed Flow Duct Fan,10 |
 | UNSPSC CODES | 40101604 | |
 | VMRS (ATA) CODES | 053-006-009 | Mixed Flow Duct Fan,10 |
