ROMEX

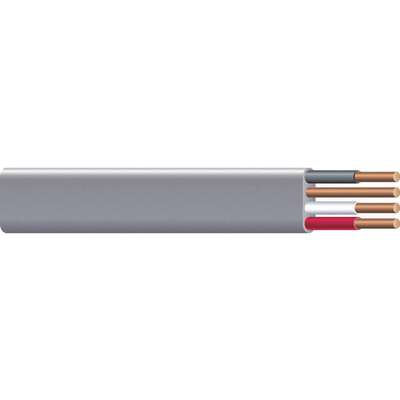

25 ft. Solid Nonmetallic Building Cable; Conductors: 3 with Ground, 8 AWG Wire Size, Gray

Hover over image to magnify
Nonmetallic Building Cabl,8/3
PI_Asset_1353767
Nonmetallic Building Cabl,8/3
PI_Asset_1353767

#925571-2 | Pkg Qty: 1

$89.95 pkg | $89.95 ea
Catalog:

Technical Specifications

Application
Underground Feeder
Nominal Outside Diameter
1.059 in. x 0.319 in.
Brand
ROMEX
Number of Conductors
3 with Ground
Cable Type
UF-B
Pack Quantity
1
Cable/Wire Type
UF-B
Packaging
Coil
Color Code
Black, White, Red, Ground
Shipping Weight
7.84 lb.
Color Family
Gray
Spool Length
25 ft.
Conductor
Solid
Standards
UL Standard 83 and UL Standard 493
Description/Special Features
UF-B Cable May Be Used Underground, including Direct Burial. Multiple Conductor UF-B Cable May Be Used for interior Branch Circuit Wiring in. Residential or Agricultural Buildings
Stranded / Solid
Solid
Features
UF-B Cable May Be Used Underground, Including Direct Burial. Multiple Conductor UF-B Cable May Be Used for Interior Branch Circuit Wiring In Residential or Agricultural Buildings
Stranding
1
Gauge/Conductor
8 AWG
Temperature Range
194
Insulation Material
PVC
Temperature Rating
194F
Item
Nonmetallic Building Cable
Type
Multiple Conductor UF-B Cable
Jacket Color
Gray
Voltage
600 V
Jacket Material
PVC
Wire Color
Bare, Black, Red, White
Jacket Type
PVC
Wire Size
8 AWG
Length
25 ft.
Wire and Cable Item
Nonmetallic Building Cable
Maximum Amps
40
Wire/Cable Jacket Material
PVC
Maximum Voltage
600 V
Wire/Cable Size
8 AWG
Mfr. Part Number
147835

Product Description

UF-B underground feeder cable is electrical wire that can be buried directly in the ground, with or without conduit. It is typically used as a feeder or branch circuit cable to extend electrical service underground from a main building to a secondary facility. It has a durable nylon jacket that resists abrasion, moisture, and corrosion. UF-B is commonly used in residential and agricultural settings to supply electricity to pumps, garages, sheds, barns, and other outbuildings. It can also be used in wet indoor settings because it resists moisture and fungus.

Item Barcode
9255712
Nonmetallic Building Cabl,8/3
  Name Item Description
Grainger Dropship Grainger Dropship 29HZ22 Nonmetallic Building
UNSPSC CODES UNSPSC CODES 26121517
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Nonmetallic Building
