PRINCE

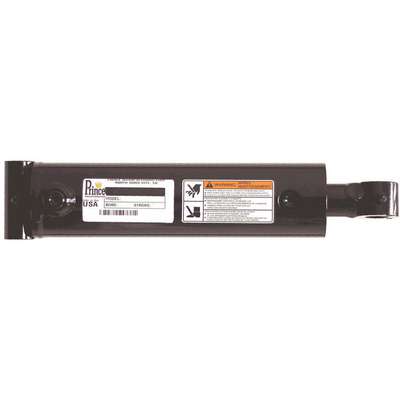

Double Acting Welded Hydraulic Cylinder; 2-1/2 Bore Dia. (In.), 24 Stroke (In.)

Hover over image to magnify
Cylinder,Hyd,2 1/2 Bore x 24
Cylinder,Hyd,2 1/2 Bore x 24

#925539-2 | Pkg Qty: 1

$451.34 pkg | $451.34 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
PRINCE
Pack Quantity
1
Item
Welded Hydraulic Cylinder
Shipping Weight
30 lb.
Mfr. Part Number
PMC-5424
General
Bore Dia.
2.5 in
Ring Material
Cast Iron
Column Load
Full PSI
Rod Dia.
1 3/8 in
Max. Pressure
2,500 psi
Rod Seal Type
Urethane U-cup
Pin Dia.
1 3/8 in
Single Acting/Double Acting
Double Acting
Piston Rod Material
Chrome Plated
Tubes
Heavy-wall Honed Steel
Piston Seal Type
Cast Iron

Product Description

Standard-duty welded hydraulic cylinders are used in systems up to 2500 psi. Welded hydraulic cylinders are used in rugged industrial applications, such as metal fabrication and waste and recycling facilities.

Welded hydraulic cylinders withstand large temperature swings and are designed for rugged applications in harsh industrial environments, including waste and recycling facilities, metal-fabricating presses, and steel mills. Sometimes called round-body cylinders, welded-cross cylinders, or ag cylinders, they are lighter and more compact than tie-rod cylinders, making them a good choice for use in mobile applications. The barrel of the heavy-duty housing is welded directly to the end caps, strengthening the cylinder body and eliminating the need for tie rods. Cross tubes are welded on to the piston end of the cylinder to add stability and have end fittings with grease zerks.
