BELL & GOSSETT

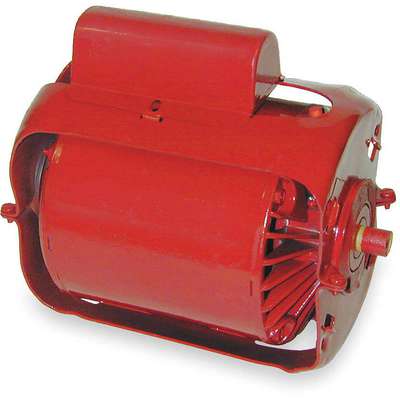

Bell & Gossett 1/12 HP Water Circulator Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, Frame B&G Frame 5
Hover over image to magnify
#925484-8 | Pkg Qty: 1
$511.44 pkg | $511.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
BELL & GOSSETT
Motor Design
Split-Phase
Enclosure
Open Dripproof
Motor Type
Split-Phase
For Pump Number
4RD16, 4RD17
Nameplate RPM
1725
Frame
B&G Frame 5 in.
Pack Quantity
1
Frame Material
Cast Iron
Phase
Single
Full Load Amps
1.7
Shipping Weight
15 lb.
Hz
60
Thermal Protection
Auto
Item
Water Circulator Motor
Voltage
115 VAC
Mfr. Part Number
111034
General
Compatible with Manufacturer Model Number
106189, Series 100 BNFI
Motor Mounting Type
Cradle Base
Compatible with Part Number
4RD16, 4RD17
Motor Phase
1
Compatible with Pump Type
In-Line Circulating Pumps
Motor Shaft Rotation
CCWLE
Compatible with Series
W06189, W06197(OBS), W06197LF
Motor Sub Application
Water Circulator
Compatible with Series Family
100
Motor Thermal Protection
Auto
Full Load Current
1.7 A
Nameplate Voltage
115V AC
HP
1/12
No. of Speeds
1
Maximum RPM
1,725 RPM
RPM Range
1,701-1,800
Minimum Ambient Temperature
32 °F
Ring to Ring Center
6 3/4 in
Motor Application
Pump
Usable @ 200V
No
Motor Enclosure Design
Open Drip-Proof
Usable @ 208V
No
Motor Frame Material
Cast Iron
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Product Description
Water circulator AC motors power water circulation pumps for the transfer of hot water in hydronic heating systems and in water recirculation equipment. They are commonly used to replace damaged water circulator motors.
Expertly Selected Product Pairings
Item Barcode
Water Motor Circ,1/12HP,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3CFE7 | Water Motor Circ,1/12HP, |
 | UNSPSC CODES | 40151504 | |
 | VMRS (ATA) CODES | 053-006-009 | Water Motor Circ,1/12HP, |
