ARMSTRONG PUMPS INC.

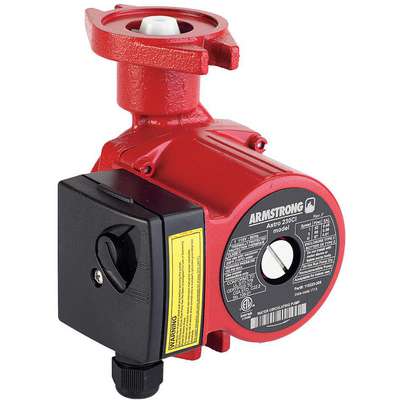

1/8 HP Cast Iron Wet Rotor, Maintenance Free Hot Water Circulating Pump
#925416-5 | Pkg Qty: 1
$196.04 pkg | $196.04 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
0.81 A
Maximum Operating Pressure
150 psi
Best Efficiency GPM @ Head
8 gpm @ 10 ft.
Mechanical Seal
Wet Rotor
Brand
ARMSTRONG PUMPS INC.
Mfr. Part Number
110223-305
Compliance
cETL
Mfr. Warranty Length
2 yr.
Connection Style
Flange
Minimum GPM @ Head
0 gpm @ 18 ft.
Drive Type
Direct
Number of Speeds
3
Face to Face Dimension
6-3/8 in.
Pack Quantity
1
Flange/Union Included
No
Phase
1
HVAC Circulating Pump Type
Hot Water Circulating Pump
Pump Mount
In Line
Height
6-3/8 in.
Pump Type
Wet Rotor, Maintenance Free
Horsepower
1/8
RPM
3600
Housing Material
Cast Iron
Series
Astro 230
Impeller Material
30% Glass-Filled Noryl®
Shaft Material
Ceramic
Inlet/Outlet Size
1-1/4 in.
Shipping Weight
7.6 lb.
Item
Hot Water Circulating Pump
Shut-Off
18 ft.
Length
5 in.
Thermal Protection
Yes
Loop Configuration
Closed
Voltage
115 VAC
Maximum GPM @ Head
18 gpm @ 1 ft.
Width
6 in.
Maximum Head
18 ft.
General
Body Gasket Material
EPDM
Maximum Flow Rate @ 1 Feet of Head
18 gpm
Brand and Connection Combo
ARMSTRONG PUMPS INC. , Flange Connection
Maximum Flow Rate @ 10 Feet of Head
9 gpm
Compatible Discharge Pipe Size
1 1/4 in
Maximum Flow Rate @ 15 Feet of Head
3 gpm
Compatible Intake Pipe Size
1 1/4 in
Maximum Flow Rate @ 5 Feet of Head
14 gpm
Compatible Media Type
Water
Maximum Media Temperature
230 Degrees F
Electrical Connection Type
Hardwired
Mounting Location
In-Line
Features
3 Speed, Maintenance Free, Compact, High Performance
Nameplate Voltage
115V AC
Flange or Union Included
Yes
Number of Flange Mounting Holes
2
For Use With Potable Systems
No
Phase and Brand
ARMSTRONG PUMPS INC. Single Phase
Includes
(2) Gaskets
Pump Housing Material
Cast Iron
Manufacturer Warranty Length
2 yr
Series Family
Astro 2
Maximum Feet of Head
18 ft
Standards
ETL
Product Description
The hot water circulating pump was designed to pump glycol and water solutions up to 50% in domestic and light commercial closed loop hydronic heating systems. Flanges not included.
