TE-CO

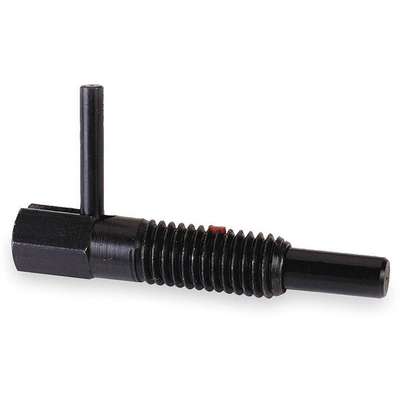

Spring Plunger, Thread Size 5/8"-11, Thread Length 1.8200", Plunger Projection 1", Steel

Hover over image to magnify
Plunger,Hand,Steel,Zinc,5/8-11,
Plunger,Hand,Steel,Zinc,5/8-11,

#925405-1 | Pkg Qty: 2

$57.06 pkg | $28.53 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body
Steel
Mfr. Part Number
54308
Body Finish
Zinc
Mounting Type
Threaded
Body Length
2 in.
Overall Length
3.0500 in.
Body Material
Steel
Pack Quantity
2
Brand
TE-CO
Plunger
Case Hardended Steel, Zinc Plate
Finish
Zinc Plated Clear Chromate
Product Type
Spring Plunger
Force
1.00 Initial, 5.00 Final
Shipping Weight
0.44 lb.
Function
Plunger Can Be Completely Withdrawn Into Body And Locked Into Retracted Position
Spring Material
302/304 Stainless
Handle Type
Lever
Thread
Partially Threaded
Item
Spring Plunger
Thread Length
1.82 in.
Locking
Yes
Thread Size
5/8"-11
Material
Steel
Type
Hand Retractable
General
Body Dia.
5/8 in
Plunger Material
Steel
Final Nose Force
5 lb
Plunger Projection
1 in
Initial Nose Force
1 lb
Plunger Width
0.6200 in
Nose Shape
Chamfered
Retractable
Yes
Plunger Dia.
0.3800 in
Thread-Locking Element Included
Yes
Plunger Finish
Zinc
With Locking Plunger
Yes

Product Description

Hand-Retractable Plungers

  • Sold in pkg. of 2
  • Cylindrical nose with tapered end and chamfered plunger. For fastening, positioning, and latching applications. Can be fully retracted by pulling handle or ring. Locking plungers can be locked into a retracted position, while employing the optional locking element actually locks the threads of the plunger into a tapered hole. Steel plungers have zinc-plated clear chromate finish.
Item Barcode
9254051
Plunger,Hand,Steel,Zinc,5/8-11,
 NameItemDescription
Grainger DropshipGrainger Dropship2YLR4Plunger,Hand, Steel,Zinc,5/
UNSPSC CODESUNSPSC CODES31161721
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Plunger,Hand, Steel,Zinc,5/
