THOMAS & BETTS

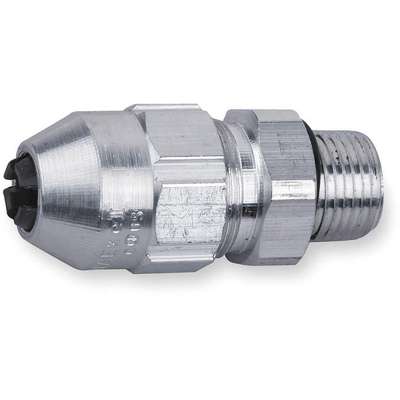

Aluminum Cable Connector, Conduit Size: 2", Cord Dia. Range: 1.52" to 1.86"

Hover over image to magnify
Cable Connector,2 In,Straight
Cable Connector,2 In,Straight

#925326-2 | Pkg Qty: 1

$201.76 pkg | $201.76 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Color
Silver
Liquid Tight / Dust Tight
Dust Tight
Body Material
Aluminum
Male/Female
Male
Box Connection
2 in. MNPT
Material
Aluminum
Brand
THOMAS & BETTS
Material of Construction
Aluminum
Collar Material
Aluminum
Maximum Operating Temperature
194 deg. F
Color Family
Silver
Mfr. Part Number
TCF200-186AL
Conduit Size
2 in.
Minimum Operating Temperature
-40 deg. F
Gland Color Code
No Code
Number of Cords
1
Hazardous Location Rating
Class I, Zone 1, Class I, Zone 2, Division 2
Overall Length
5-1/16 in.
Hub Size
2 in.
Pack Quantity
1
Hub Trade Size
2 in.
Series
TCF
IP Rating
IP66
Shipping Weight
1.55 lb.
Insulated
No
Thread Size
2 in.
Item
Enhanced Rating Cord Connector
Thread Type
NPT
Length
5.11 in.
Type
Portable Cord and Tray Cable
General
Compatible Conduit Trade Size
2 in
Min. Throat Dia.
1.89"
Connection Orientation
Straight
Resistance Properties
Corrosion Resistant
Environmental Rating
Hazardous Locations, Vapour
Standards
Class 4418-05, CSA LR4484, RoHS Compliance
External Strain Relief Length
No External Strain Relief
Strain Relief Type
No External Strain Relief
For Maximum Cable OD
1.86 in
Style - Connector
Straight
For Minimum Cable OD
1.52 in
Thread Gender
Male
For Use With
Cable Gland Connector
Thread-Type
NPT Thread
Length - Box to End of Connector
4 3/16 in

Product Description

Silver Grip TCF Series nonmagnetic, corrosion-resistant straight aluminum fittings are designed for installation in Class 1 Gas and Vapor environments, without the use of tools. This fitting provides efficient strain relief for cable entering enclosures and raceways in hazardous locations. The tapered neoprene bushing and O-ring seal out moisture and dirt. The chuck grip exceeds the pullout value required by NEC.

Note: Tray cable and portable cord applications comply with IEC requirements for Class 1, Zone 2, and Zone 1 locations, respectively, when used with enclosures containing no arcing or sparking devices. For enclosures with arcing or sparking devices, TCF fittings must be used in combination with a certified Class 1 hazardous location sealing fitting.
