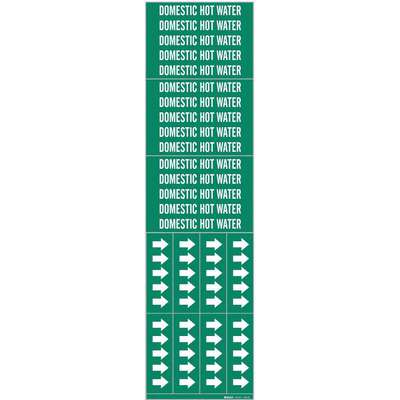

Brady Self-Adhesive, Vinyl Pipe Marker; Fits Pipe Size O.D.: 3/4" and Smaller, Legend: Domestic Hot Water

Hover over image to magnify
Pipe Marker,2-1/4"H,2-3/4"W,PK3
Pipe Marker,2-1/4"H,2-3/4"W,PK3

#925235 | Pkg Qty: 1

$2.51 pkg | $2.51 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Abrasion Resistant
Yes
Marker Attachment Style
Self-Adhesive
Adhesive Material
Acrylic
Markers per Card
3
Background Color
Green
Material
Vinyl
Brand
BRADY
Mfr. Part Number
7350-3C
Character Height
1/2 in.
Operating Temperature Range
-40 deg. F to 180 deg. F
Die Cut
Yes
Package Quantity
1
Finish
Glossy
Printed Language
English
Fits Pipe Size Outside Diameter
3/4 in. and Smaller
Reflective
No
Glow-in-the-Dark
No
Roll Length
2-3/4 in.
Indoor/Outdoor
Indoor/Outdoor
Roll Width
2-1/4 in.
Item
Pipe Marker
Shipping Weight
.36 lb.
Legend
Domestic Hot Water
Thickness
0.004 in.
Legend Color
White
UV Resistant
No
General
ANSI/ASME A13.1
Yes
Pipe Marker Material
Vinyl
Adhesive Pipe Marker Format
Die-Cut on Cards
Pipe Marker Mounting Style
Adhesive Pipe Marker
Average Outdoor Durability
8 to 10 yr
Pipe Marker Package Type
Card
Fits Pipe O.D.
3/4 in and Smaller
Pipe Marker Subject Matter
Water
Maximum Pipe O.D.
3/4 in
Protective Coating
No Protective Coating
Maximum Service Temperature
180 °F
Service Temperature Range
-40° to 180°F
Minimum Service Temperature
-40 °F
Standards
ANSI A13.1-2007
Number of Pipe Markers
3
With or Without Arrows
Without
Pipe Marker Legend
Domestic Hot Water

Product Description

This self-sticking vinyl pipe marker is designed to identify piping system contents in accordance with the ASME (ANSI) A13.1 Standard. It features durable vinyl construction for indoor and outdoor environments, and a coated backing for easy installation. Marker ends should be banded with directional flow arrow tape, available separately, to indicate pipe content flow direction.
