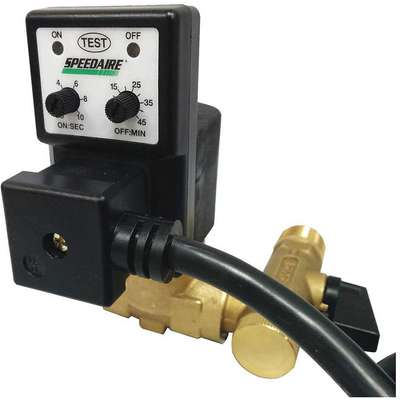

1/2" NPT, 115V, Brass Timed Electric Auto Drain Valve

1/2" NPT, 115V, Brass Timed Electric Auto Drain Valve

#925140-1 | Pkg Qty: 1

$104.27 pkg | $104.27 ea
Item Number 925140-1
Scanner Description Auto Drain Valve,Drain Size 1/
Inventory Status Drop Ship Item
Weight 1.63 lb
Brand SPEEDAIRE

Technical Specifications

Adjustable Drain Cycle
0.5 min. to 45 min.
Maximum Pressure
300 psi
Air Consumption
scfm
Mfr. Part Number
53DN44
Amps AC
0.3
Overall Depth
9 in.
Body Material
Brass
Overall Height
4-55/64 in.
Brand
SPEEDAIRE
Overall Width
4 in.
Drain Rate
4.0 gpm
Pack Quantity
1
Drain Size
1/4 in.
Pipe Size
1/4 in. NPT
Enclosure
NEMA 4
Purge Time
1 sec. to 30 sec.
Hz
60
Voltage
115 V
Item
Timed Electric Auto Drain Valve

Product Description

Timed Electric Auto Drain Valve, Pipe Size 1/2 in NPT, Drain Size 1/4 in, Drain Rate 4.0 gpm, Adjustable Drain Cycle 0.5 min to 45 min, Purge Time 1 sec to 10 sec, Voltage 115 V, Max. Pressure 300 psi, Operating Temp. Range 35 Degrees to 165 Degrees F, Hz 60, Amps AC 0.3 A, Enclosure NEMA 4, Body Material Brass, Overall Height 4 55/64 in, Overall Width 4 in, Overall Depth 9 in, Includes 6 ft Heavy Duty Grounded Power Cord, Drain Strainer

Item Barcode
9251401
  Name Item Description
Grainger Dropship Grainger Dropship 53DN44 Auto Drain Valve,Drain
UNSPSC CODES UNSPSC CODES 40141603
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Auto Drain Valve,Drain
