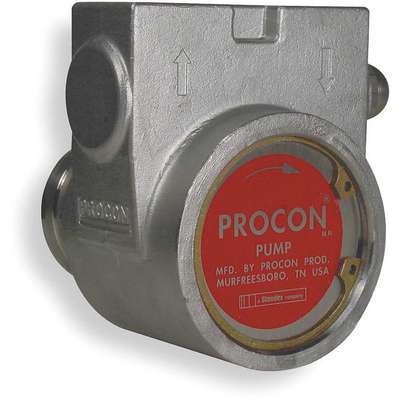

Rotary Vane Pump: 1/2 in Inlet/Outlet NPTF (In.), 346 gph Max. Flow (GPH), Stainless Steel

Hover over image to magnify
Pump,Rotary Vane,SS
Pump,Rotary Vane,SS

#925116-6 | Pkg Qty: 1

$368.85 pkg | $368.85 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Stainless Steel
HP @ 50 PSI
1/3
Brand
PROCON
Item
Rotary Vane Pump
By-Pass
No
Maximum Flow (GPH)
346
GPH
330
Maximum Pressure
250 psi
GPH of Water @ 100 PSI
330
Maximum Temperature (Deg. F)
158
GPH of Water @ 150 PSI
328
Mfr. Part Number
115B330F31XX
GPH of Water @ 200 PSI
327
Minimum Flow Rate (GPH)
326
GPH of Water @ 250 PSI
326
Mounting
Carbonator Clamp Style
GPH of Water @ 50 PSI
331
Pack Quantity
1
HP @ 100 PSI
3/4
Relief Pressure Maximum
250 psi
HP @ 150 PSI
3/4
Relief Valve PSI Setting
200
HP @ 200 PSI
1
Shaft
303 Stainless Steel
HP @ 250 PSI
1-1/4
Shipping Weight
4.3 lb.
General
External Relief
Required
Relief Pressure Max. (PSI)
250 psi

Product Description

Ideal for use with carbonated, deionized, or distilled water and moderately aggressive liquids, this PROCON positive displacement rotary vane pump runs quietly, has low vibration and pulsation characteristics, and is virtually maintenance-free. Model can handle many liquids with low lubricating characteristics at relatively high pressures. Flow remains constant over entire pressure range while metal-to-metal contact is eliminated, resulting in low starting torque. Pump is compatible with fire-resistant fluids, hydraulic oil, lubricants, coolants, insecticides, and soap. Can also be used in dispensers, espresso machines, sprayers, filtration and water purification processes, team-cleaning and car-washing machines, pressure boosters, atomizing/misting humidification systems, circulation systems, laboratory pumps, pilot plants, boiler feeds, textile machines, and fire jockey pumps.
