SCHNEIDER ELECTRIC

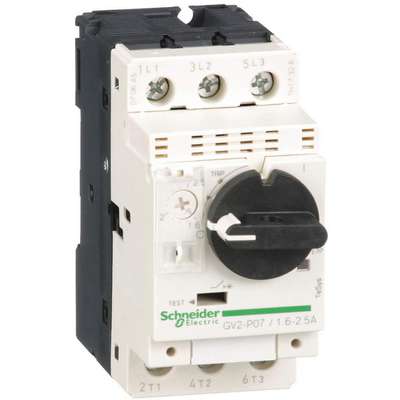

Schneider Electric Manual Motor Starter: Rotary Knob, No Enclosure, 1.6 to 2.5A, 3 Poles, 600V AC
Hover over image to magnify
#925002-5 | Pkg Qty: 1
$266.64 pkg | $266.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Number of Poles
3
Depth
3.83 in.
Package Quantity
1
Description/Special Features
Reliable Overload Protection
Phase Loss Sensitivity
No
Enclosure NEMA Rating
No Enclosure
Shipping Weight
.8 lb.
Enclosure Type
Open
Starter Type
IEC Style
Height
3-1/2 in.
Type
IEC
Item
Manual Motor Starter
Width
1-3/4 in.
Mfr. Part Number
GV2P07
General
HP @ 1 Phase - 230V
1/6 hp
HP @ 3 Phase - 480V
1 hp
HP @ 3 Phase - 200V
1/2
HP @ 3 Phase - 575V
1 1/2 hp
HP @ 3 Phase - 208V
1/2 hp
Operator
Rotary Knob
HP @ 3 Phase - 230V
1/2
Overload Relay Amp Setting
1.6 to 2.5A
HP @ 3 Phase - 240V
1/2 hp
Pilot Light
Yes
HP @ 3 Phase - 460-575V
1/1-1/2
Standards
UL, CSA
HP @ 3 Phase - 460V
1
Product Description
IEC Manual Motor Starters
- Bimetallic thermal overload relays 3-pole Trip test Phase loss sensitivity protection 35mm DIN rail mounting Class 10 overload protection Schneider Electric Can be used alone for local, manual control of a single motor. Operating current of instantaneous magnetic trip is approx. 13 times the max. thermal trip (nonadjustable setting). 10K AIR at 480V. Mechanical and electrical life: 100,000 operations, max. 25 operations per hr. UL Listed, CSA Certified, and CE Certified. Conforms to IEC standards.
Expertly Selected Product Pairings
Item Barcode
Manual Motor Starter,Knob,1.6
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2MNJ5 | Manual Motor Starter,Knob, |
 | UNSPSC CODES | 39121521 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Starter,Knob, |
