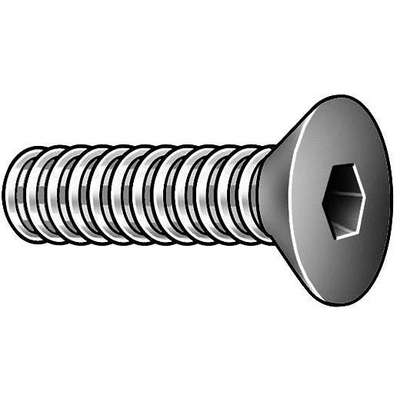

Flat Socket Flat Head Cap Screw, 1/4"-20, Steel, Alloy Steel, Chrome Plated, 1/2" Length, PK 5
#924960-8 | Pkg Qty: 5
$12.65 pkg | $2.53 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Mfr. Part Number
MPB3573
Brand
APPROVED SUPPLIER
Minimum Tensile Strength
150000
Decimal Equivalent
0.156 in.
Overall Length
1/2 in.
Drive Type
Hex Socket
Product Size
1/4-20 x 1 2 in.
Driver Size
5/32 in.
Rockwell Hardness
RC 33 to 39
Fastener Head Height
0.161 in.
Shipping Weight
.04 lb.
Fastener Industry Standards
ASTM F835, ASME B18.3
Socket Cap Screw Head Style
Flat
Fastener Thread Style
Fully Threaded
Style
Socket Head Cap Screw
Finish
Chrome Plated
System of Measurement
Fractional
Head Diameter Range
0.531 in.
Temperature Range
-65 deg. F to 300 deg. F
Head Type
Flat Head
Thread Diameter
1/4 in.
Item
Socket Flat Head Cap Screw
Thread Direction
Right Hand
Length
1/2 in.
Thread Length
11/32 in.
Material
Alloy Steel
Thread Size
1/4"-20
Material Grade/Class
Alloy Steel
Thread Type
Coarse
Meets/Exceeds
SAE J429/ASME B18.3
General
Head Angle (Deg.)
82 °
Threads per Inch
20
Screw Style
Socket Head Cap Screw
Vented Hole Size
Not Vented
Product Description
This flat-type socket head cap screw features an 82° countersunk flat head. It mounts flush so moving parts can pass over freely. It is not recommended for applications that require optimal antifatigue properties.
Item Barcode
Shcs,Flat,Steel,1/4"-20x11/32",
Name | Item | Description | |
---|---|---|---|
Grainger Dropship | 4GUY9 | SHCS,Flat, Steel,1/4"- | |
UNSPSC CODES | 31161501 | ||
VMRS (ATA) CODES | 053-006-009 | SHCS,Flat, Steel,1/4"- |
