SPEEDAIRE

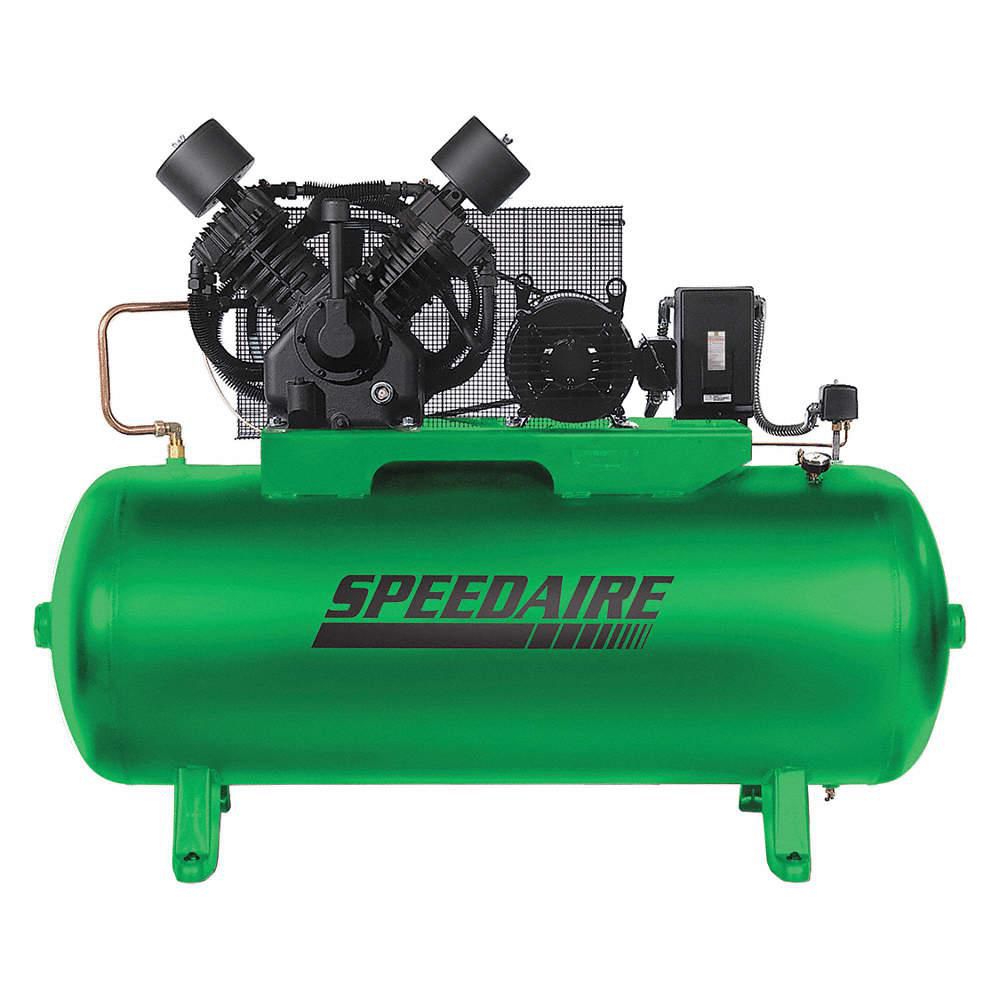

3 Phase - Electrical Horizontal Tank Mounted 15.0HP - Air Compressor Stationary Air Compressor, 120
Hover over image to magnify
#924945-5 | Pkg Qty: 1
$6,302.30 pkg | $6,302.30 ea
Pricing is subject to change without notice
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Outlet
3/4 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
35WC59
Amperage
42.8 A
Number of Stages
2
Brand
SPEEDAIRE
Overall Height
54 in.
Compressor Package Type
Base Model
Overall Length
69 in.
Compressor Type
Tank Mounted
Overall Width
25 in.
Control
Pressure Switch
Package Quantity
1
Cylinder Material
Cast Iron
Phase
3
Enclosure
Open Drip Proof
Pump Location
Tank Mounted
Finish
Powder Coated
Pump RPM
1020
Free Air CFM @ Max Pressure
50
Shipping Weight
908 lb.
Horsepower
15
Tank Size
120 gal.
Hz
60
Tank Style
Horizontal
Input Voltage
200 to 208 VAC
Tank Type
Horizontal
Item
Electric Air Compressor
Voltage
200-208
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
Number of Stages - Air Compressor
2
Air Tank Size
120 gal
Off Pressure Switch Setting
175 psi
Air Tank Style
Horizontal
On Pressure Switch Setting
135 psi
Compressor Voltage
200V AC
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
50.0
Output Power
15 hp
Free Air Flow Rate @ Max Pressure
50 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
50 cfm
Pump Location - Air Compressor
Tank Mounted
HP
15
Pump Oil Capacity
4 qt
HP - Air Compressor
15.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Manual Drain Valve, Motor Starter, Oil Sight Glass, Pressure Gauge, Pressure Safety Valve, Tri-voltage Motor
Standards
ASME, CSA
Input Voltage - Air Compressor
200V AC
Style - Air Compressor
Simplex
Life Expectancy
15,000 hr
Tank Size - Air Compressor
120 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Horizontal
Max Operating Pressure
175 psi
dBA @ 3 Feet
89
Max. Pressure - Air Compressor
175 psi
Product Description
Delivers higher pressure than 1-stage models with low rpm for long life. 100% duty cycle (with use of synthetic oil). Features a totally enclosed, safety-designed belt guard. Expected pump life is 15,000 hr. Must be hardwired.
