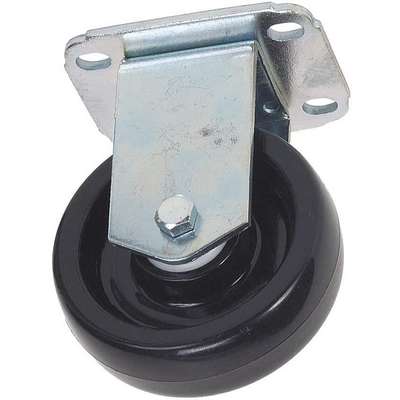

Light- Medium Duty, Rigid NSF-Listed Sanitary Plate Caster; 300 lb. Load Rating, 5" Wheel Dia.

Hover over image to magnify
Rgi Plate Castr,Polyolefin,5
PI_Asset_947820
Rgi Plate Castr,Polyolefin,5
PI_Asset_947820

#924914-6 | Pkg Qty: 1

$11.83 pkg | $11.83 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
300 lb.
Caster Brake Included
No
Mfr. Part Number
4W916
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
5/16 in.
Caster Core Material
Plastic
Mounting Height
6-3/16 in.
Caster Load Rating Range
Light- Medium Duty
Non-Marking
Yes
Caster Plate Hole Pattern
C
Number of Mounting Holes
4
Caster Plate Size
2-1/2 in. x 3-5/8 in.
Number of Wheels
1
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
1-3/4 in. x 3-1/16 in.
Caster Wheel Bearings
Delrin
Package Quantity
1
Caster Wheel Shape
Standard
Plate Caster Sub-Type
Rigid
Caster Wheel/Tread Material
Polyolefin
Replacement Wheel
1KB21
Core Color
Black
Shipping Weight
2.05 lb.
Durometer
65 Shore D
Swivel Construction
Kingpinless
Frame Finish
Zinc Plated
Wheel Color
Black
Frame Material
Steel
Wheel Diameter
5 in.
Includes Thread Guards
No
Wheel Width
1-1/4 in.
Inside Bolt Hole Spacing
1-3/4 in. x 2-13/16 in.
Wheel/Tread Hardness Rating
Hard
Item
NSF-Listed Sanitary Plate Caster
General
Application
NSF Listed General Purpose
Standards
ANSI/ICWM,NSF
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
5/32"
Thread Guards
No
Caster Product Group
Rigid Caster
Tread Shape
Standard
Caster Temp. Range Available
No
Wheel Bearing Type
Delrin
Load Rating Range
300 to 999 lb
Wheel Core Material
Plastic
Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Mounting Plate Bolt Hole Pattern
C
Wheel/Tread Hardness
65 Shore D
Mounting Plate Size
2 1/2 in x 3 5/8 in
Wheel/Tread Material
Polyolefin
Mounting Plate Size (Bolt Hole Pattern)
2 1/2 in x 3 5/8 in (C)

Product Description

Light-duty NSF-listed sanitary plate casters have double ball swivel bearings and swivel more smoothly than economy light-duty NSF-listed sanitary plate casters. They are suitable for use on carts, prep tables, food-service equipment, racks, and other equipment used in food-service areas, food-manufacturing facilities, and similar environments where the casters will be transporting relatively light loads over smooth, flat surfaces. Sometimes known as institutional plate casters, these light-duty plate casters have zinc-plated or nickel-plated steel frames.

NSF-listed sanitary plate casters are built to satisfy the National Sanitation Foundation's (NSF) rigorous testing requirements for casters that are used in environments where they will be exposed to frequent washdowns, oils, or chemicals. They are suitable for use in environments where sanitary conditions must be maintained. These casters have a mounting plate that installs onto the bottom of carts, prep tables, food-service equipment, racks, and similar items. They are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
