POLARIS

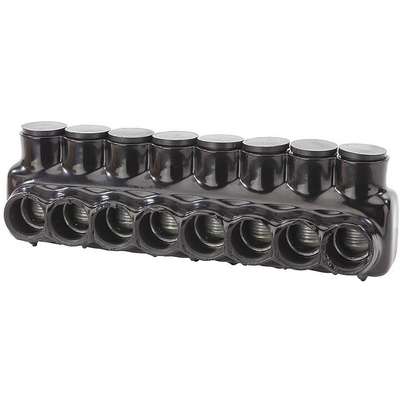

Polaris 9.82"L 8-Port Insulated Multitap Connector, Double-Sided Entry, Z, 550 kcmil Max. Conductor Size
Hover over image to magnify
#924906-8 | Pkg Qty: 1
$170.75 pkg | $170.75 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Aluminum
Mfr. Part Number
IPLD500-8B
Brand
POLARIS
Minimum Conductor Size
4 AWG
Cable Size
500 kcmil
Mount
N
Cable Size Code
500 kcmil
Number of Ports
8
Connector Type
Double-Sided Entry, Z
Pack Quantity
1
Direct Burial Rated
No
Screw Material
Aluminum
Head Style
Hex
Shipping Weight
2.15 lb.
Insulation Material
Plastisol
Stud Size
5/16 in.
Item
Insulated Multitap Connector
Stud/Tab Size
5/16 in.
Length
9.82 in.
Type
8 Ports
Maximum Conductor Size
550 kcmil
Width
2.83 in.
General
Compatible with Product Type
Copper and Aluminum Cables
RoHS Compliant
Yes
For Conductor Material
Aluminum, Copper
Standards
CSA Certified, California Title 24 Compliant
For Stranded Copper Wire Size - Maximum
500 kcmil
Strip Length
1 3/4 in
For Stranded Copper Wire Size - Minimum
4 AWG
Tap Shape
Z
For Wire Size
1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil
Torque
450 in-lb
Hex Size
5/16 in
Wire Size Range
4 AWG – 500 kcmil
No. of Ports
8
Product Description
Wire entry ports on both sides of the connector allow for access from either side. This connector is insulated with high-dielectric strength plastisol, and molded for a precise fit.
Expertly Selected Product Pairings
Item Barcode
Insulated Multitap Connector,9.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 34UH94 | Insulated Multitap |
 | UNSPSC CODES | 39121408 | |
 | VMRS (ATA) CODES | 053-006-009 | Insulated Multitap |
