Fluke Networks Test Set, Connector Type: ABN/PP, For Use With Telephone Lines

Hover over image to magnify
Test Set,TS52 Pro w/ Abn
PI_Asset_966878
PI_Asset_966879
PI_Asset_966880
PI_Asset_966881
PI_Asset_966882
Test Set,TS52 Pro w/ Abn
PI_Asset_966878
PI_Asset_966879
PI_Asset_966880
PI_Asset_966881
PI_Asset_966882

#924903-9 | Pkg Qty: 1

$781.28 pkg | $781.28 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
FLUKE NETWORKS
Line Polarity Indicator
Yes
Connector Type
ABN/PP
Mfr. Part Number
52801009
Data Safe Monitor
Yes
Package Quantity
1
Dialing Method
Tone/Pulse
Shipping Weight
2.55 lb.
Display
LCD
Waterproof
Yes
Item
Test Set
General
Application
Butt in Test Set, Telephone Test Set, Digit Grabbing, DC Meter, Miliamp Detection, Caller ID, Data Safe
For Use With
Telephone Lines
Features
Polarity Indication, Last Number Redial, Mute, DSL/POTS Filtering, Data Lockout Protection/Override, One-Way Amplified Speaker, Two-Way Speakerphone, Speed Dial Memory and Backlit Keypad
Includes
9V Replaceable Battery

Product Description

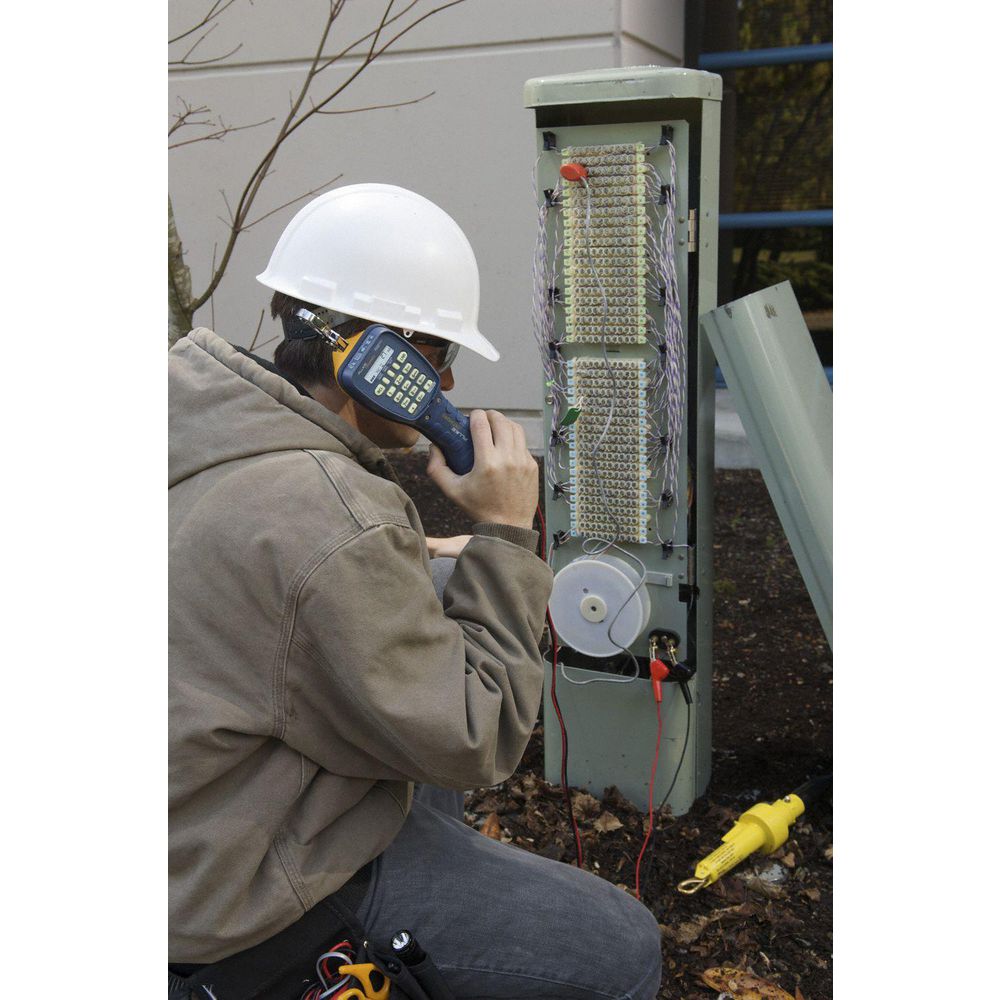

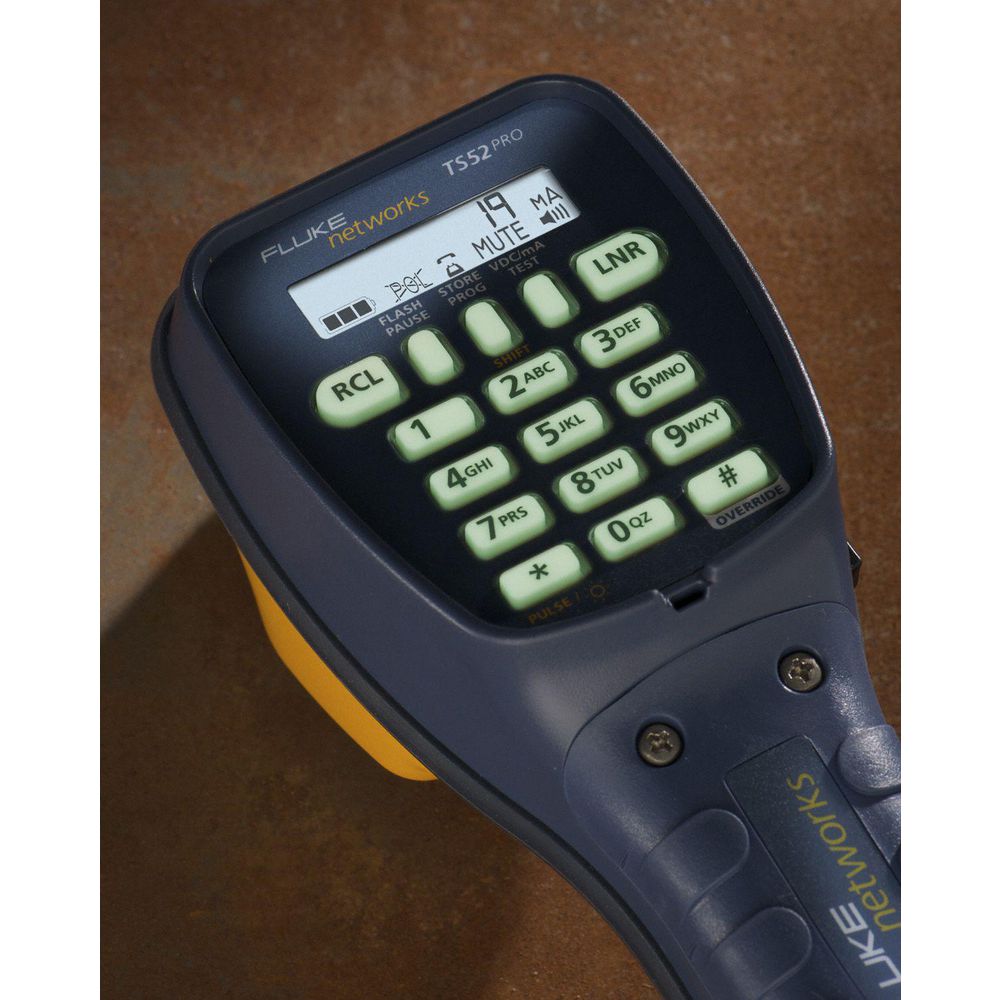

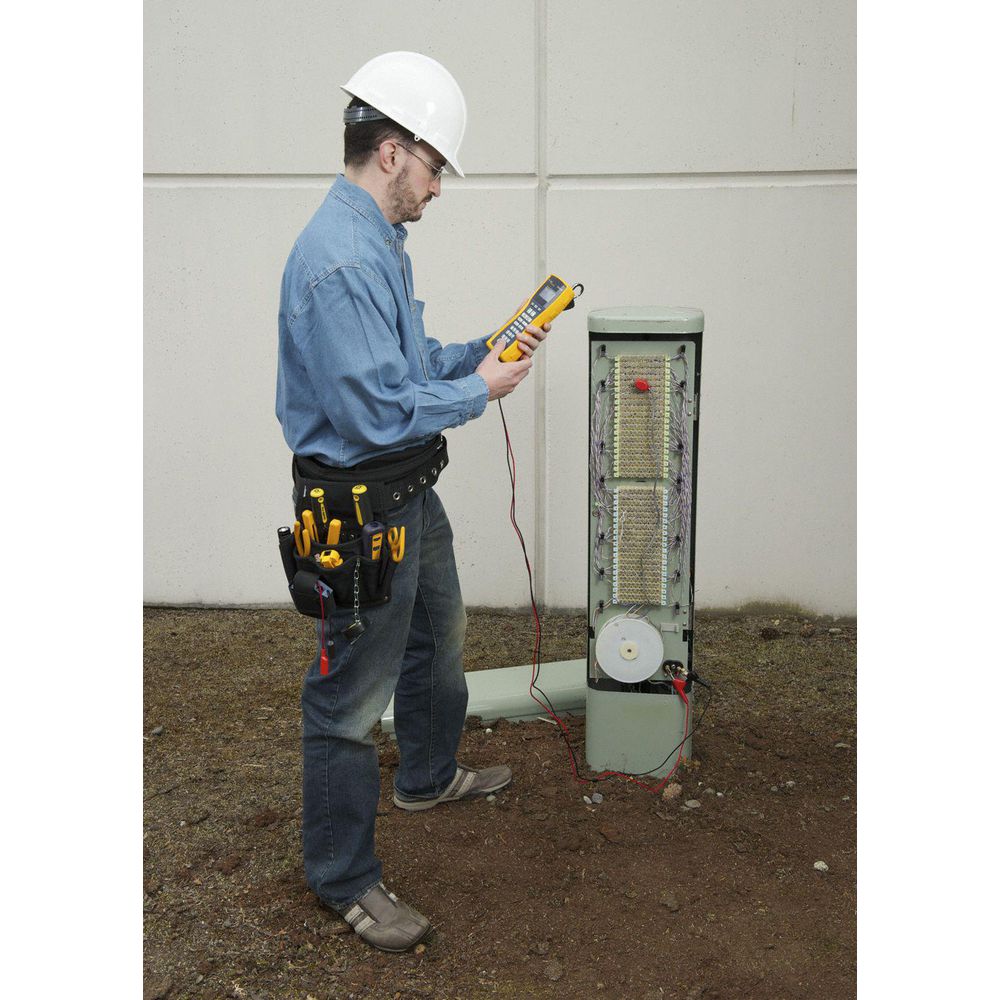

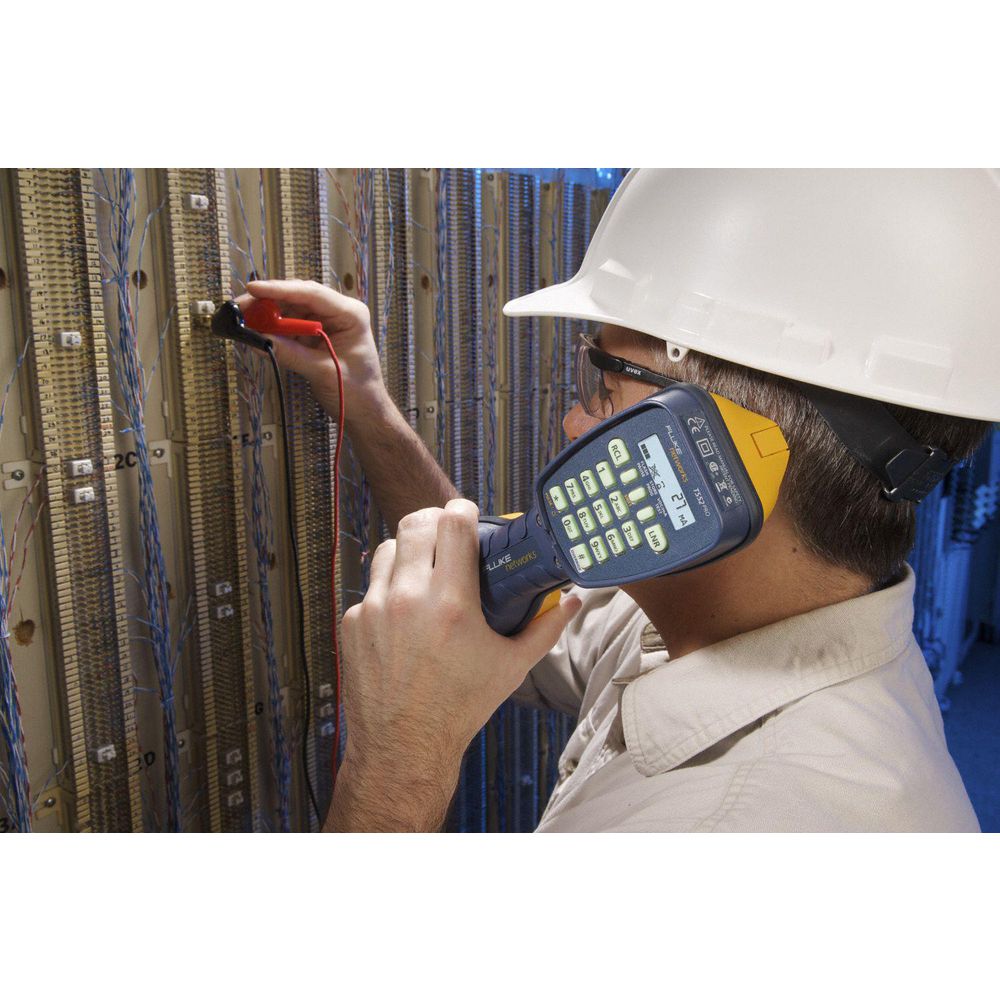

Fluke Networks® TS® 52 PRO Test Set features radiant liquid crystal display (LCD) user interface. It allows you to see what cannot be heard in any outside plant environment. The back lit LCD and phosphorescent (glow-in-the-dark) keypad brings light to even the darkest of work environments. DataSafe™ Pro data protection technology features high-impedance monitoring, lockout, and override. DSL/POTS filtering technology allows technicians to clip on a live DSL line to test POTS service without downing or disrupting data service. RainSafe set is designed for use in rain condition. 2-way hands-free speakerphone for true hands-free conversation.

Test functions include:

  • Data indication—warns when data is present.
  • Voltage indication—troubleshooting feature to identify potential line problems
  • Current (mA) indication—verifies sufficient line current
  • Caller-ID—verifies service is functional
  • DTMF Digit Grabbing—isolate faulty customer premise equipment
