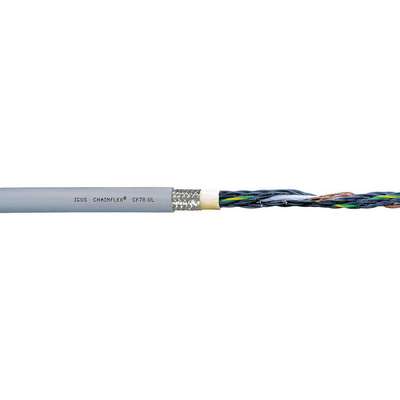

100 ft. Shielded Continuous Flexing Control Cable, Gray, Max. Amps 21

100 ft. Shielded Continuous Flexing Control Cable, Gray, Max. Amps 21
Continuous Flxing Control
PI_Asset_1353735

#924900-7 | Pkg Qty: 1

$397.70 pkg | $397.70 ea
Item Number 924900-7
Scanner Description Continuous Flxing Control
Inventory Status Drop Ship Item
Weight 8.95 lb
Brand CHAINFLEX

Technical Specifications

Brand
CHAINFLEX
Mfr. Part Number
CF78-UL-15-03-100
Cable Type
Continuous Flexing
Nominal Outside Diameter
0.37 in.
Color Code
Black with White Numbers + 1 grn/yel
Number of Conductors
3
Color Family
Gray
Pack Quantity
1
Conductor Material
Copper
Shielded/Unshielded
Shielded
Description/Special Features
Chainflex CF77-UL Continuous Flex Cables are Oil and Coolant Resistant, Flame Retardant, Notch Proof and PVC and Halogen Free
Spool/Coil Length
100 ft.
Gauge/Conductor
16/3
Standards
cRUus/CE
Item
Continuous Flexing Control Cable
Temperature Range
-31 deg. F to 176 deg. F
Jacket Color
Gray
Type
Shielded
Jacket Material
Polyurethane
Wire Color
Black with White Numbers, (1) Green/Yellow
Maximum Amps
21
Wire Size
16 AWG
Maximum Voltage
1000 V

Product Description

Continuous flexing control cable is electrical wire that connects power from an automated machine to moving components or processes within the machine that need to be controlled. It is designed for optimal flexibility to withstand the constant or frequent motion of moving machinery without damage. Flex control cable is typically used in manufacturing and robotic applications, such as powering and controlling a robotic arm.
