CRYDOM

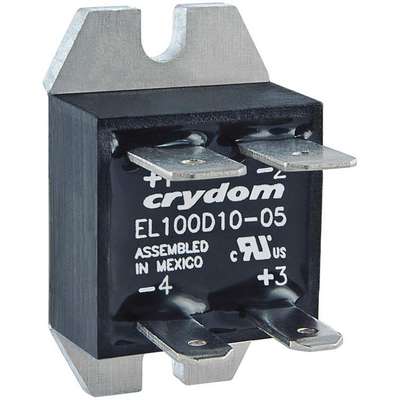

Crydom 1-Pole Flange Mount Solid State Relay; Max. Output Amps w/Heat Sink: 20
Hover over image to magnify
#924694-1 | Pkg Qty: 1
$47.58 pkg | $47.58 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Maximum Output Volts
280
Body Depth
1.44 in.
Maximum Output w/Heat Sink
10A
Body Height
0.56 in.
Mfr. Part Number
EL100D10-05
Body Width
0.83 in.
Minimum Input Volts
4
Brand
CRYDOM
Minimum Output Volts
24
Case Color
Black
Mounting
Surface
Contact Form
SPST-NO
Number of Poles
1
Finger Safe
No
Output or Controlled Voltage
3 to 100 VDC
Heat Sink
Not Included
Overall Height
1 in.
Input Power Consumption
0.1 W
Package Quantity
1
Input Voltage
4 to 8 VDC
Phase
1
Input or Control Voltage
4 to 8 VDC
Shipping Weight
.25 lb.
Item
Solid State Relay
Switch Type
MOSFET
Maximum Input Volts
8
Voltage Output
3 to 100VDC
Maximum Output Amps w/Heat Sink
20
General
Body Depth - Relay
1.44 in
Mounting - Relay
Surface
Body Height - Relay
0.56 in
Mounting - Solid State Relay
Flange
Body Width - Relay
0.83 in
Output or Controlled Voltage Range
3 to 100V DC
Contact Form - Relay
SPST-NO
Overall Height - Relay
1 in
Max. Output Amps Without Heat Sink
9.0 A
Standards
UL, CE
Product Description
This EL Series solid-state relay features a compact, panel-mount design, with high surge current ratings and low, off-state leakage current. It is housed in a compact, 21 wide x 35 mm long mini-puck package with polarized quick connect terminals.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Solid State Relay,4 To 8VDC,10A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 13V366 | Solid State Relay,4 to |
 | UNSPSC CODES | 39122333 | |
 | VMRS (ATA) CODES | 053-006-009 | Solid State Relay,4 to |
