DAYTON

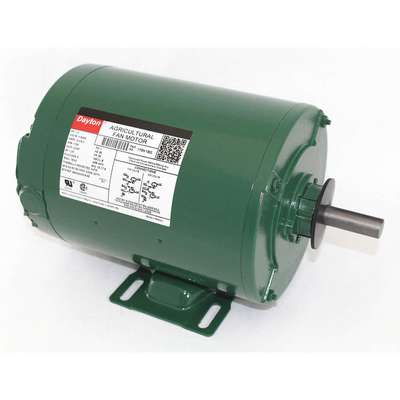

Dayton Agricultural Fan Motor, 1 HP, Split-Phase, Nameplate RPM 1,725, Voltage 115/230V AC, 56 Frame
Hover over image to magnify
#924683-9 | Pkg Qty: 1
$450.02 pkg | $450.02 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Recognized (E47479), CSA Certified (701887)
Mounting Position
All Angle
Bearings
Ball
NEMA/IEC Frame
56
Brand
DAYTON
Nameplate RPM
1725
Duty
Continuous Air Over
Number of Speeds
1
Duty Cycle
Continuous
Overall Length
11-3/8 in.
Enclosure
Totally Enclosed Air-Over
Pack Quantity
1
Frame
56
Phase
Single
Full Load Amps
13.0/6.5
Replacement For
4K089
Hz
60
Rotation
CW/CCW
Insulation Class
B
Service Factor
1-1/4
Item
Agricultural Fan Motor
Shaft Length
1-15/16 in.
Length Less Shaft
9-7/16 in.
Shaft Orientation
Shaft Down
Mfr. Part Number
1YBV1
Shaft Type
Keyed
Motor Design
Split-Phase
Shipping Weight
40.36 lb.
Motor Type
Split-Phase
Thermal Protection
Auto
Mounting
Base
Voltage
115/230 VAC
General
Application
Farm Duty
Motor Service Factor
1.25
HP
1
Motor Shaft Design
Keyed
Includes
Shaft Key, Shaft Slinger, Gasketed Wiring Compartment Cover
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Sub Application
Agricultural Fan
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Auto
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
67.4 %
Motor Enclosure Design
Totally Enclosed Air-Over
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Motor Mounting Position
All Angle
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
Poultry/livestock belt drive farm-duty AC motors allow the user to change the motor and driver sheaves to adjust the air flow in poultry and livestock barns. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
