EATON BUSSMANN

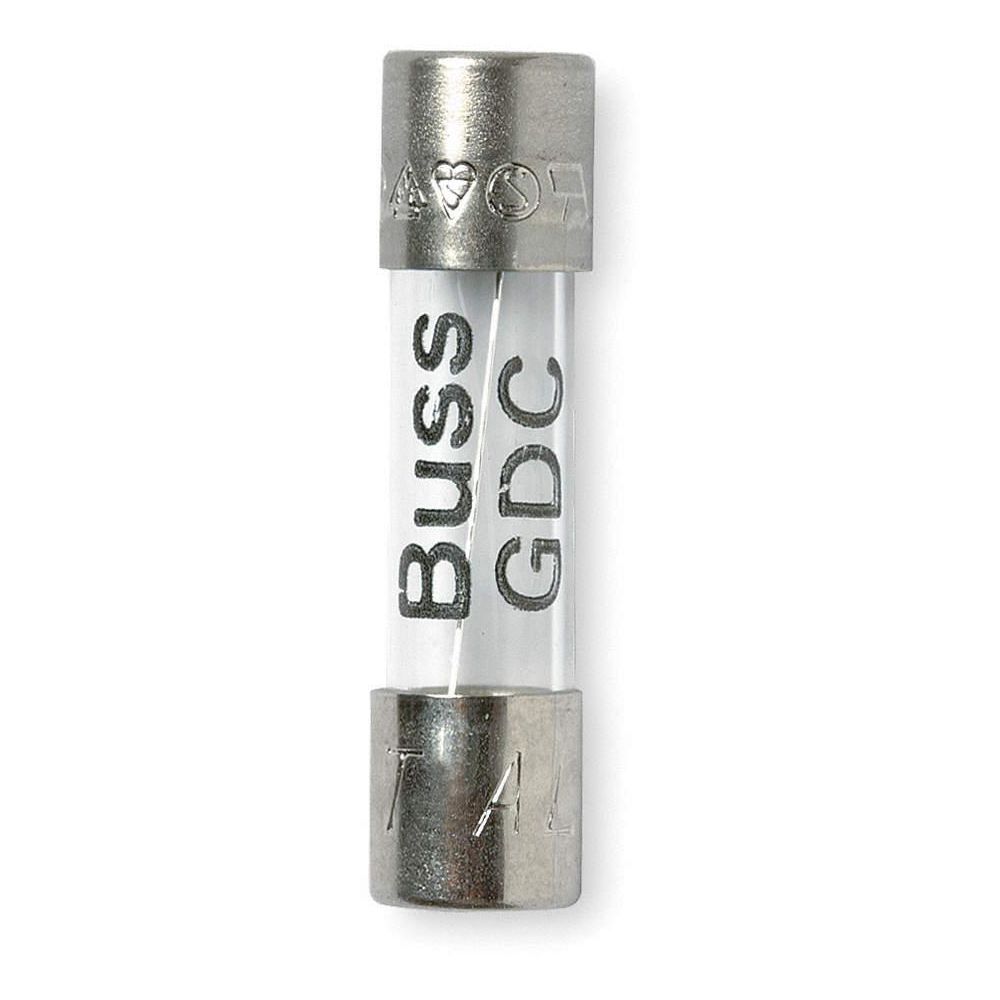

3-15/100A Time Delay Glass Fuse with 250VAC Voltage Rating; GDC Series

Hover over image to magnify
Fuse,3.15A,Gdc,250VAC,PK5
Fuse,3.15A,Gdc,250VAC,PK5

#924679-4 | Pkg Qty: 5

$29.00 pkg | $5.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Voltage Rating
250 VAC
In Line Fuseholder
E
Amperage
3-15/100 A
Indicating
Yes
Body Material
Glass
Indicating / Nonindicating
Indicating
Body Style
Cylindrical
Interrupt Rating
35A at 250 VAC
Brand
EATON BUSSMANN
Item
Fuse
DC Voltage Rating
Not Rated
Length
20 mm
Diameter
5 mm
Mfr. Part Number
GDC-3.15A
Element
Single
Package Quantity
5
Functionally Equal To
Mersen/Ferraz Shawmut GDG, Littelfuse 218
Rejection / Nonrejection
Nonrejection
Fuse Amps
3-15/100A
Series
Gdc
Fuse Holder Code
E
Shipping Weight
.1 lb.
Fuse Interrupt Rating
35 A at 250 VAC
Speed
Time Delay
Fuse Speed
Time Delay
Type
Electronic
Fuse Voltage Rating
250 VAC
Voltage Rating
250 VAC
General
Compatible Fuse Block Series
HTB
Fuse Size
20mm L x 5mm dia
Equivalent Series
218, GDC, GDG, S506
Standards
CE, UL, cURus Guide JDYX2/JDYX8, IMQ, MITI/JET File JET1641-31003-1005
Fits Fuse Block Style
Nonrejection
Visual Indication
Glass Fuse

Product Description

These cartridge-style, time-delay glass fuses tolerate temporary inrush currents without opening, which prevents nuisance-blowing from equipment startups. Also called slow-blow glass fuses, they open to disconnect an electrical circuit when exposed to sustained loads and short circuits.

Glass fuses provide overcurrent protection for low-current circuits in appliances, electronics circuit boards, and lighting fixtures. They typically have a voltage rating of 300VAC or less and are used for applications where they won't be exposed to high heat that could shatter the glass. Their small, cylindrical body is see-through for checking whether the fuse wire is intact or has melted.
