BONOMI

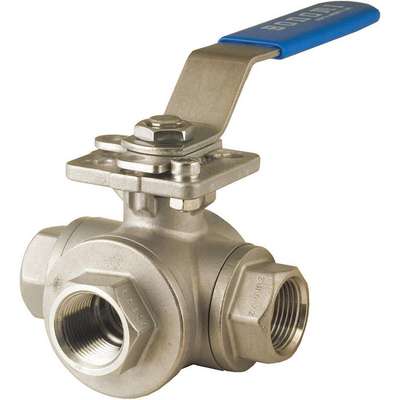

316 Stainless Steel NPT x NPT x NPT Ball Valve, Locking Lever, 3/4" Pipe Size
Hover over image to magnify
#924588-1 | Pkg Qty: 1
$196.44 pkg | $196.44 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Manual
Maximum Pressure
1000 psi CWP
Ball Valve Item
Ball Valve
Mfr. Part Number
956N-3/4"
Body Material
Stainless Steel
Package Quantity
1
Body Style
3-Way
Port
Full T
Brand
BONOMI
Seal Material
PTFE/Viton
Connection Type
NPT x NPT x NPT
Seat Material
RPTFE
For Pipe Size
3/4 in.
Shipping Weight
3.08 lb.
General Connection Type
Male NPT
Stem Material
316 Stainless Steel
Handle Material
304 Stainless Steel with Vinyl Grip
Stem Type
Blowout Proof
Handle Type
Locking Lever
Temperature Range (Deg. F)
-20 to 450 deg. F
Item
Ball Valve
Valve Style
3-Piece
General
Ball Valve Product Group
Manual
Standards
ANSI B1.20.1
Body Seal Material
RPTFE
Valve Basic Body Material
Stainless Steel
Features
Valve has 4 Ball Seats; therefore, any port can be the pressurized inlet
Valve Structure
3-Piece
Max. Steam Pressure
150 psi WSP
Product Description
This Bonomi® ball valve features self-adjusting stem packing and has a 90° and 180° flow path.
Item Barcode
Ball Valve,3-Way,Full T Port,3/
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 46CE57 | Ball Valve,3- Way,Full T |
 | UNSPSC CODES | 40141607 | |
 | VMRS (ATA) CODES | 053-006-009 | Ball Valve,3- Way,Full T |
