CENTURY

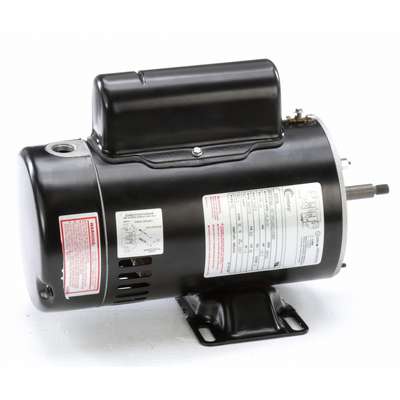

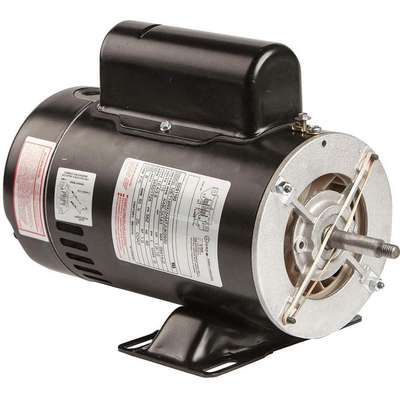

Century 1, 1/10 HP Pool and Spa Pump Motor, Capacitor-Start, 115V, 56Z Frame
#924583-1Pkg Qty: 1
$502.96 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CENTURY
Item
Pool Pump Motor
Mfr. Part Number
SDS1102
Package Quantity
1
Shipping Weight
23.35 lb.
Brand
CENTURY
Package Quantity
1
Item
Pool Pump Motor
Shipping Weight
23.35 lb.
Mfr. Part Number
SDS1102
General
Ambient Temperature
50 °C
Application
Pool/Spa Motor
Bearings
Ball
Body Dia.
5.7 in
Bolt Circle Dia.
5 3/16 in
Conduit Box Position
F3
Duty
Continuous
Duty Cycle
Continuous
Efficiency Group
Standard
Enclosure
Open Dripproof
Finish
Black
Flange Material
Aluminum
Frame
56Z
Full Load Amps
10.4/3.6
HP
1, 1/10
Height
8-9/16 in.
Hz
60
Ins. Class
B
Insulation Class
B
Length Less Shaft
10-5/16 in.
Max. Ambient Temp.
50 °C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Open Dripproof
Motor Flange Material
Aluminum
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Threaded
Motor Shaft Rotation
CCWSE
Motor Sub Application
Pool and Spa Pump
Motor Thermal Protection
Auto
Motor Type
Capacitor-Start
Mounting
Stud
NEMA/IEC Frame
56Z
Nameplate RPM
3450/1725
No. of Speeds
2
Overall Length
12-11/16 in.
Phase
Single
RPM Range
3,001-3,600
Rotation
CCWSE
Service Factor
1
Shaft
Threaded 3/8-16 UNC-2A RH
Shaft Dia.
1/2 in
Shaft Length
2-5/16 in.
Shaft Material
Stainless Steel
Standards
California Energy Commission Appliance Regulations 2008, CSA, UL
Thermal Protection
Auto
Voltage
115 VAC
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ambient Temperature
50 °C
Motor Frame Material
Steel
Application
Pool/Spa Motor
Motor Mounting Position
Horizontal
Bearings
Ball
Motor Mounting Type
Rigid Base
Body Dia.
5.7 in
Motor Service Factor
1
Bolt Circle Dia.
5 3/16 in
Motor Shaft Design
Threaded
Conduit Box Position
F3
Motor Shaft Rotation
CCWSE
Duty
Continuous
Motor Sub Application
Pool and Spa Pump
Duty Cycle
Continuous
Motor Thermal Protection
Auto
Efficiency Group
Standard
Motor Type
Capacitor-Start
Enclosure
Open Dripproof
Mounting
Stud
Finish
Black
NEMA/IEC Frame
56Z
Flange Material
Aluminum
Nameplate RPM
3450/1725
Frame
56Z
No. of Speeds
2
Full Load Amps
10.4/3.6
Overall Length
12-11/16 in.
HP
1, 1/10
Phase
Single
Height
8-9/16 in.
RPM Range
3,001-3,600
Hz
60
Rotation
CCWSE
Ins. Class
B
Service Factor
1
Insulation Class
B
Shaft
Threaded 3/8-16 UNC-2A RH
Length Less Shaft
10-5/16 in.
Shaft Dia.
1/2 in
Max. Ambient Temp.
50 °C
Shaft Length
2-5/16 in.
Motor Application
Pump
Shaft Material
Stainless Steel
Motor Bearings
Ball
Standards
California Energy Commission Appliance Regulations 2008, CSA, UL
Motor Design
Capacitor-Start
Thermal Protection
Auto
Motor Efficiency Group
Energy Efficient
Voltage
115 VAC
Motor Enclosure Design
Open Dripproof
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Flange Material
Aluminum
Product Description
Capacitor-start pool and spa pump AC motors use a capacitor to provide additional power during startup for higher starting torque. This higher torque allows these single-phase motors to move heavier loads at lower speeds, allowing them to be more efficient than split-phase motors.
