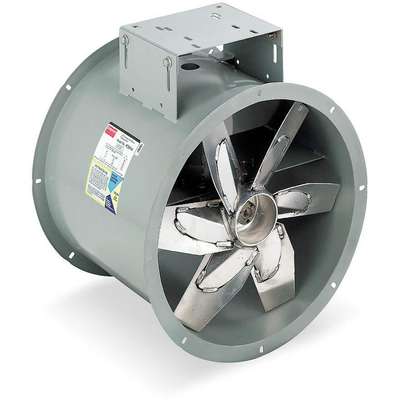

Dayton Tubeaxial Fan: Clean Air, 18 in Blade, 38 sones Max Noise Level @ 5 Feet, Belt Drive

Hover over image to magnify
Tubeaxial Fan,31 In. H,21 In. W
PI_Asset_948200
Tubeaxial Fan,31 In. H,21 In. W
PI_Asset_948200

#924580-7 | Pkg Qty: 1

$1,305.89 pkg | $1,305.89 ea
Pricing is subject to change without notice

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Blade Diameter
18 in.
Mounting Position
Vertical/Horizontal
Blade Material
Aluminum
Number of Blades
6
Brand
DAYTON
Package Quantity
1
Height
31 in.
Shipping Weight
58.95 lb.
Item
Tubeaxial Fan
Width
21 in.
Mfr. Part Number
166205A
General
Assembly
Fully Assembled
Maximum Fan Speed
2,255 RPM
Body Diameter
18 1/2 in
Maximum Inlet Air Temperature
200 Degrees F
Bolt Circle Diameter
19 7/8 in
Maximum Motor Horsepower
1 1/2 hp
Brake Horsepower
1 2/7 hp
Maximum Motor Speed
2,255 RPM
Center Height
12 1/2 in
Maximum Noise Level @ 5 Feet
38 sones
Compatible Flange Part Number
4C718
Maximum Static Pressure
1 in wc
For Air Type
Clean Air
Minimum Airflow
3,230 cfm
For Airflow (Dependent on Motor)
3,230 cfm to 5,298 cfm
Minimum Motor Horsepower
33/100 hp
For Fan Speed (Motor Sold Separately)
1,375 RPM to 2,255 RPM
Minimum Motor Speed
1,375 RPM
For Motor Horsepower (Motor Sold Separately)
33/100 hp to 1 1/2 hp
Propeller Shaft Diameter
7/8 in
Includes
Belt Guard
Replacement Fan Blade Part Number
4C715
Includes Drive Package
No
Resistance Properties
Rust Resistant
Includes Motor
No
Spark Resistant Construction Type
B
Maximum Airflow
5,298 cfm
Standards
AMCA
Maximum Ambient Temperature
104 Degrees F

Product Description

Fan moves air through ductwork, while the streamlined belt tunnel ventilates the drive compartment with outside air. Rust-protected steel housing with baked enamel paint and belt guards. Factory-installed cast-iron sheave is assembled on fan shaft. Permanently lubricated ball bearings. Vertical- or horizontal-mount. Not for use in hazardous locations. Motors sold separately.
