OTC

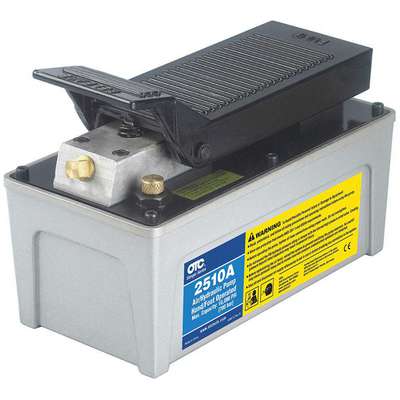

OTC Air Powered Hydraulic Pump: 98 cu.-in. Oil Capacity, 0.42 gal. Reservoir Capacity, Foot Pedal Controlled
#924570Pkg Qty: 1
$847.14 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
OTC
Item
Hydraulic Foot Pump
Mfr. Part Number
2510A
Number of Stages
2
Operation Type
Foot
Overall Height
7.9 in.
Overall Length
12.4 in.
Overall Width
6.9 in.
Package Quantity
1
Shipping Weight
17.59 lb.
Brand
OTC
Overall Height
7.9 in.
Item
Hydraulic Foot Pump
Overall Length
12.4 in.
Mfr. Part Number
2510A
Overall Width
6.9 in.
Number of Stages
2
Package Quantity
1
Operation Type
Foot
Shipping Weight
17.59 lb.
General
Actuation Type
Food Pedal Controlled
Air Consumption (SCFM)
12
Built-In
Internal Pressure Relief Valve
Capacity (PSI)
10000
Displacement (GPM) @ 0 PSI
59.00 cu in/min
Displacement @ 10,000 PSI
4 cu in/min
Oil Capacity (Cu.-In.)
98
Oil Displacement @ 0 PSI
98.00 cu in/min
Oil Displacement @ 10,000 PSI
4 cu in/min
Operating Air PSI
90 to 140
Reservoir Capacity (Gal.)
0.42
Treadle
Foot Operated
Usable Oil Capacity Horizontal Mount
98 cu in
dBA
76
Actuation Type
Food Pedal Controlled
Oil Displacement @ 0 PSI
98.00 cu in/min
Air Consumption (SCFM)
12
Oil Displacement @ 10,000 PSI
4 cu in/min
Built-In
Internal Pressure Relief Valve
Operating Air PSI
90 to 140
Capacity (PSI)
10000
Reservoir Capacity (Gal.)
0.42
Displacement (GPM) @ 0 PSI
59.00 cu in/min
Treadle
Foot Operated
Displacement @ 10,000 PSI
4 cu in/min
Usable Oil Capacity Horizontal Mount
98 cu in
Oil Capacity (Cu.-In.)
98
dBA
76
Product Description
Hold, or Release Load with Pedal Control, Pump
Item Barcode
Stinger Air/Hydraulic Pump
