HUBBELL WIRING DEVICE-KELLEMS

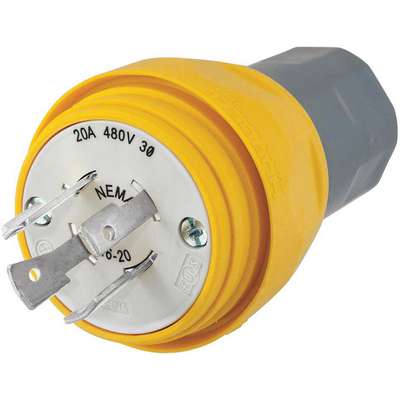

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L16-20P

Hover over image to magnify
Wt Plug,L16-20P,20A,480VAC,
Wt Plug,L16-20P,20A,480VAC,
Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Watertight Locking Plug, Yellow; NEMA Configuration: L16-20P Video

#924500-6 | Pkg Qty: 1

$99.42 pkg | $99.42 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
20 A
Maximum Operating Temperature
60 °C
Antimicrobial
No
Mfr. Part Number
HBL26W76
Blade Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 °C
Body Length
2.51 in.
NEMA Configuration - Plugs & Connectors
L16-20
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Plug Configuration
L16-20P
Color Family
Yellow
NEMA Rating
4, 4X, 6, 6P
Connection Orientation
Straight
Number of Blades
4
Cord Size
0.325 in. to 0.875 in.
Number of Poles
3
Corrosion Resistant
No
Number of Wires
4
Current Rating
20 A
Outside Diameter
2.51 in.
Description
Twist Lock
Overall Length
2.51 in.
For Maximum Cable Diameter
0.875 in.
Package Quantity
1
For Minimum Cable Diameter
0.375 in.
Phase
Three
Grade
Industrial
Polarized
Yes
HP
5 HP
Shipping Weight
.55 lb.
Horsepower
5 hp
Shrouded
No
Housing Color
Yellow
Special Features
Moisture, Dust and Weather Resistant
Housing Material
Thermoplastic Elastomer
Standards
ANSI, NEMA WD-1 and WD-6
IP Rating
IP69K
Voltage
480V AC
Item
Watertight Locking Plug
Wire Connection Type
Screw Terminals
Material
Thermoplastic Elastomer, Valox
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L16-20P
Grade - Plugs and Receptacles
Industrial
Special Features
Moisture, Dust and Weather Resistant
HP
5.0
Voltage - Plugs and Receptacles
480V AC

Product Description

Feature keyed interior for easy installation and high conductivity brass termination. Also designed with Gotcha® ring and collapsible bushing strain relief. The strain relief nut seals on the body, eliminating areas of debris collection, and provides impact resistance. Unique cone seal prevents dirt and debris from collecting at cable entrance. Triple bypass seal keeps water away from electrical connections. Smooth body design minimizes collection points and simplifies wash down process. Also features cone seal that adjusts to various cable ranges. All stainless steel hardware and corrosion-resistant connection points.
