SCHNEIDER ELECTRIC

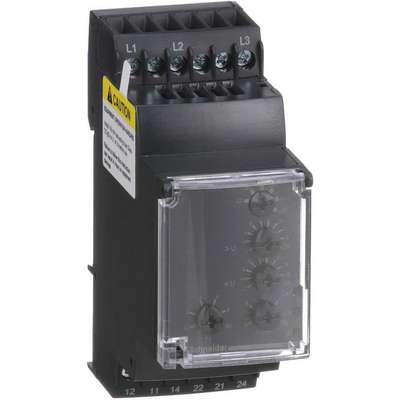

Schneider Electric Phase Monitor Relay, 208 to 480 VAC Input Voltage, Contact Form: DPDT, Base Type: DIN Rail

Hover over image to magnify
3 Phase Monitor Relay,Dpdt,
PI_Asset_1371680
3 Phase Monitor Relay,Dpdt,
PI_Asset_1371680
Schneider Electric Phase Monitor Relay, 208 to 480 VAC Input Voltage, Contact Form: DPDT, Base Type: DIN Rail Video

#924489-5 | Pkg Qty: 1

$370.68 pkg | $370.68 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
AC Contact Rating
5 A @ 24 V, 3 A @ 250 V
Package Quantity
1
Base Type
DIN Rail
Phase
3
Brand
SCHNEIDER ELECTRIC
Phase Loss Sensitivity
Yes
Contact Form
DPDT
Phase Loss Time Delay
Instantly
Drop-Out Range
75% to 95%
Phase Reversal
Yes
Input Voltage
208 to 480 VAC
Phase Reversal Time Delay
Instantly
Input or Control Voltage
208 to 480 VAC
Phase Unbalance
Adjustable 5 to 15%
Item
Phase Monitor Relay
Pick Up Range
190 to 500VAC
Mfr. Part Number
RM35TF30
Pins
12
Mounting
DIN Rail
Power Rating
1250
Number of Contacts
2
Resistive Contact Amp Rating
5
Over Voltage
Adjustable 2 to 20% of Line Voltage Setting
Shipping Weight
.2 lb.
Overall Height
2.82 in.
Type
Voltage Sensing
General
AC Contact Rating - Relay
3A @ 250V, 5A @ 24V
Phase - Electrical
3
Body Depth - Relay
3.54 in
Phase Unbalance Time Delay
Adjustable 0.1 to 10.0 sec
Body Height - Relay
2.82 in
Restart
Auto
Body Width - Relay
1.38 in
Restart Time Delay
Fixed 1.5 sec
Contact Form - Relay
DPDT
Trip Delay
0.10 to 10 sec.
DC Contact Rating - Relay
1.00A @ 24V
Under Voltage
193 to 484V AC
Mounting - Relay
DIN Rail
Under and Over Voltage Time Delay
Adjustable 0.1 to 10.0 sec.
Number of Pins - Relay
12
Voltage Unbalance
2
Overall Height - Relay
2.82 in

Product Description

This phase monitoring relay can help detect phase loss, phase reversal, and over/under voltage in 3-phase circuits. It can also help protect against phase unbalance.
