This product has been discontinued and is no longer available. Shop Category
Share
Print
POWER FIRST

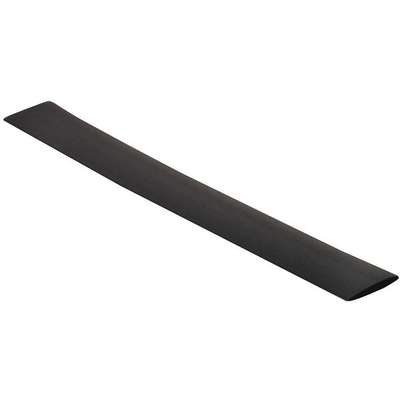

Heat Shrink Tubing, Thin Wall, Polyolefin with Adhesive, Flexible, Shrink Ratio 3:1
Hover over image to magnify
#924447-9 | Pkg Qty: 14
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
POWER FIRST
Resists
Puncture, Abrasion, Splits, Mild Acids and Alkalis
Color Family
Black
Shipping Weight
.16 lb.
Flame Retardant
No
Shrink Temperature
-45 to 125F
Heat Shrink Tubing Shrink Ratio
3:1 Shrink Ratio
Shrink Tubing Adhesive Lined
Yes
Inside Diameter After Shrinking
0.167 in.
Shrink Tubing Inside Diameter Before Shrinking
0.500 in.
Inside Diameter Before Shrinking
0.500 in.
Shrink Tubing Material Type
Flexible
Inside Diameter Expanded Pre-Shrink
1/2 in.
Shrink Tubing Type
Heat Shrink Tubing
Item
Heat Shrink Tubing
Shrink Tubing Usable Temperature Range
-67 to 230F
Length
6 in.
Temperature Range
-67 deg. F to 230 deg. F
Maximum Voltage
600 V
Tube Material
Polyolefin
Mfr. Part Number
4RCV3
Use Shrink Tubing With Wire Size
6 to 1 AWG
Minimum Shrink Temperature
212F
Wall Thickness After Shrinking
0.070 in.
Pack Quantity
14
Wall Type
Thin Wall
General
Adhesive Lined
Yes
Shrink Tubing Wall Thickness After Shrinking
0.07 in
I.D. After Shrinking
0.17 in
Standards
UL 224
I.D. Before Shrinking
0.5 in
Tubing Flexibility
Flexible
Package Style
Individual Pieces
Tubing Wall Type
Thin Wall
Shrink Tubing I.D. Before Shrinking
0.5 in
Use With Wire Size
6 to 1 AWG
Shrink Tubing Properties
Low Smoke
Product Description
General purpose adhesive-lined heat shrink tubing provides protection, insulation, and moisture sealing for a wide variety of applications. The adhesive sticks to many plastics, rubbers, and metals. This tubing covers wire and cable and is heated to shrink the tubing and seal the adhesive.
Expertly Selected Product Pairings
Item Barcode
Shrink Tubing,0.5in Id,Black,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4RCV3 | Shrink Tubing,0.5in |
 | UNSPSC CODES | 39121723 | |
 | VMRS (ATA) CODES | 053-006-009 | Shrink Tubing,0.5in |
