GENERAC

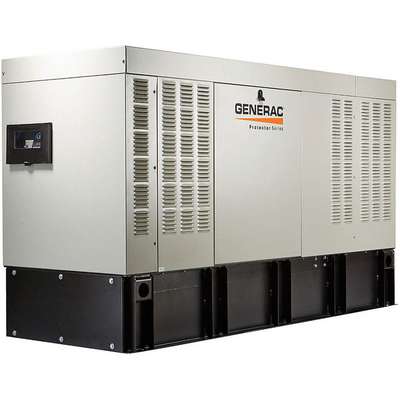

Generac Automatic Standby Generator: 20kW, 83.0, Diesel, Liquid, CARB Compliant, Single Phase

Hover over image to magnify
Auto Standby Generator,20kW
PI_Asset_976367
Auto Standby Generator,20kW
PI_Asset_976367
Generac Automatic Standby Generator: 20kW, 83.0, Diesel, Liquid, CARB Compliant, Single Phase Video

#924413-6 | Pkg Qty: 1

$17,567.99 pkg | $17,567.99 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Amperage
83 A
Hz
60 Hz
Battery Included
No
Item
Automatic Standby Generator
Brand
GENERAC
Length
81 in.
CARB Compliant
Yes
Mfr. Part Number
RD02025ADAE
Enclosure Material
Aluminum
Package Quantity
1
Engine Brand
Generac
Phase
Single
Engine Cooling
Liquid
Series
RD0
Engine Size
2.2 L
Shipping Weight
1474 lb.
Fuel Tank Capacity
34 gal.
Voltage
120/240 VAC
Fuel Type
Diesel
Width
31 in.
Generator Fuel Type
Diesel
kVA Rating
25
Generator Voltage
120 VAC/240 VAC
kW
20
Height
50 in.
General
12VDC Battery Charger
Yes
Over Crank Protection
Yes
Battery Requirements
27F, 700 CCA
Over Speed Shutdown
No
Engine Block Heater
Optional
Power Factor
1
Fault Indicator Lights
Yes
Repeat of Exercise Cycle
7 day
Fuel NPT Pipe Connection Sz.
5/16 in
Run Time Hour Meter
Yes
Generator Mfr. Warranty Details
5 yr
Sound Level dBA
70 dBA
High Temp. Alarm
Yes
Standards
UL2200, CSA, NEMA MG1-22, EGSA
Low Coolant Level Alarm
Yes
Standby Power Rating
20kW
Low Oil Pressure Alarm
Yes
Standby Power Rating Range
0 to 24kW
Min. Gas Pressure @ Generator (In WC)
5 to 14
Transfer Switch Included
No

Product Description

This standby generator is designed to run quietly, withstand highly corrosive environments, and stand up to severe weather conditions. It provides options for additional features to address individual applications, such as advanced controls for instant monitoring. An RTS Series transfer switch, available separately, is required for use with this generator. Local permits for gas piping, concrete foundation, electrical inspection, and approval are necessary for installation.
