QUICK CABLE

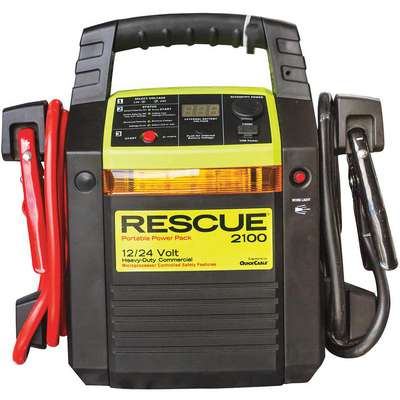

Quick Cable Automatic, Handheld Portable Power Pack; Boosting, Charging; For Battery Voltage: 12 V DC, 24 V DC
Hover over image to magnify
#924397-5 | Pkg Qty: 1
$546.71 pkg | $546.71 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amp Hours
20Ah
Indoor/Outdoor
Indoor/Outdoor
Amperage
900 A
Input
1
Automatic/Manual
Automatic
Item
Portable Power Pack
Battery Capacity
22 Ah
Lead Size
5-5/32 ft.
Boost Amps @ Voltage
900A @ 12V, 900A @ 24V
Material
Plastic/Copper
Brand
QUICK CABLE
Mfr. Part Number
604063-360-001
CEC Compliant
CEC Compliant
Overall Depth
17 in.
Cable Gauge
2 ga.
Overall Height
16 in.
Cable Length
5-5/32 ft.
Overall Width
10-1/2 in.
Charge Type
Smart
Package Quantity
1
Charger Function
Boosting, Charging
Peak Amps
1600A
Charger Style
Handheld Portable
Portable
Yes
Charging Amps @ Voltage
900A @ 12V, 900A @ 24V
Shipping Weight
41.95 lb.
Cold Cranking Amps @ Voltage
900A
Test Feature
Battery Status, Reverse Polarity, Charging Status Voltage Protection
Cranking Amps
900A
Timer
No
For Battery Voltage
12 V DC, 24 V DC
Wire Gauge
2 AWG
For Use with Battery Type
Lead Acid
General
Application
6/12V Multi-Battery Charging, Trucks and Larger Vehicles
Charging Current @ Voltage
2 A @12V
Avg. Charge Time 12V High
Variable
Features
Battery Status, Charging Status Voltage Protection, Digital Battery Voltage Gauge Reads internal and External, Reverse Polarity
Avg. Charge Time 12V Low
Variable
Green Certification or Other Recognition
California Energy Commission (CEC) Certified
Boost Current @ Voltage
1100 A @ 24V, 1600 A @ 12V
Indoor / Outdoor
Indoor/Outdoor
Cable Wire Gauge
2 AWG
Indoor or Outdoor Use
Indoor/Outdoor
Charge Time 12V
Variable
Standards
ETL, BC
Charge Time 24V
Variable
Product Description
For use lead acid batteries, this handheld portable power pack is ideal for boosting and charging applications. Use to help start engines in fleet vehicles.
Compliance & Restrictions
SDS Available View
Item Barcode
Portable Power Pack,2 Ga.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49EK10 | Portable Power Pack,2 |
 | UNSPSC CODES | 26111722 | |
 | VMRS (ATA) CODES | 015-005-028 | Portable Power Pack,2 |
