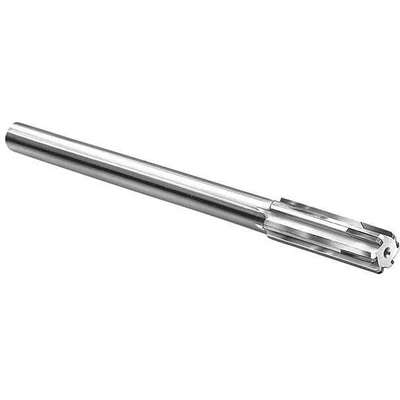

Super Tool Chucking Reamer: 11/32 in Reamer Size, 1 1/2 in Flute Lg, 6 in Overall Lg, Carbide Tipped

Hover over image to magnify
Chucking Reamer,11/32",4 Flutes
Chucking Reamer,11/32",4 Flutes

#924395-6 | Pkg Qty: 1

$78.63 pkg | $78.63 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SUPER TOOL
Overall Length
6 in.
Chamfer
45 deg.
Package Quantity
1
Chamfer Angle
45 deg.
Primary Material Application
All Materials
Cutting Direction
Right
Product Size
11/32 in.
Decimal Equivalent
0.3438
Reamer Application
Through Hole
Dimension Type
Fractional Inch
Shank
Straight
Finish
Bright (Uncoated)
Shank Diameter
17/64 in.
Flute Length
1-1/2 in.
Shank Size
0.2812 in.
Flute Type
Straight
Shank Type
Straight
Item
Chucking Reamer
Shipping Weight
.02 lb.
Left/Right Hand
Right Hand Cutting
Size
11/32 in.
Material
Carbide
Spiral Direction
Neutral
Mfr. Part Number
55222
Type
Straight Flute
Number of Flutes
4
General
Application
For General Purpose Reaming Of Most Types Of Materials Including Steel, Cast Iron, Non-Ferrous Metals
Primary Material Application ISO Code
K, N1, N3, N4, O, P
Coolant Fed
Non-Coolant Through
Reamer Size
11/32 in
Cutting Dia. Tolerance
+0.0002 in /-0.0000 in
Secondary Material Application
All Materials
Cutting Direction - Machining
Right Hand
Secondary Material Application ISO Code
H, K, M, N, O, P, S
Finish - Machining
Bright (Uncoated)
Shank Dia.
17/64 in
Material - Machining
Carbide Tipped
Shank Type - Machining
Straight
Material Applications
Aluminum, Brass, Brick, Bronze, Cast Iron, Ceramic, Composite, Concrete, Copper, Glass, Magnesium, Plastic, Porcelain, Rebar, Steel, Thermoplastic
Size - Decimal
11/32 in - 0.3438
Measurement System
Fractional Inch

Product Description

These carbide-tipped chucking reamers come in standard sizes expressed in fractional inches. Fractional inch is the most common trade size used for chucking reamers. Straight-flute reamers push chips forward into a hole as they enlarge it to an exact size for a precise fit when installing fasteners or other parts. They are the most commonly used style of reamer. These carbide-tipped chucking reamers have a bright finish that is unaffected when their cutting edges are resharpened. The reamers' straight shank mounts to the chuck of a drill press or similar machining tool.
