HASSAY SAVAGE CO.

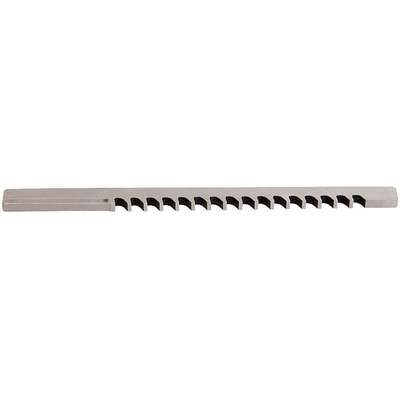

Square Broach: 6.00 mm Square Size, 12.50 mm Drill Size, 11 3/4 in Broach Lg

Hover over image to magnify
Keyway Broach,,III,W 6mm,Cut L
Keyway Broach,,III,W 6mm,Cut L

#924306 | Pkg Qty: 1

$104.54 pkg | $104.54 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
HASSAY SAVAGE CO.
Minimum Length Of Cut
13/32 in.
Broach Length
11-3/4 in.
Number of Shims Required
1
Broach Style
III
Package Quantity
1
Drill Size
12-1/2 mm
Pressure Required
1890 lbs.
Item
Square Broach
Primary Material Application
All Materials
Keyway Width
6mm
Shipping Weight
.78 lb.
Keyway Width Tolerance
+.001 -.000 in.
Square Size
6 mm
Maximum Length Of Cut
2-1/2 in.
Type
Keyseater
Mfr. Part Number
11306
General
Cut Profile
Square
Material - Machining
High Speed Steel
Drilling Tool Configuration
Individual
Measurement System
Metric

Product Description

Keyway broaches are bar-shaped tools with saw-like cutting teeth that are used to create precise keyways in the bore holes of pulleys, gears, washers, and other shaft-mounted components to lock them to keyed shafts. Each tooth on the broach is larger than the previous one, so the tool progressively removes more material as it moves into the hole. Keyway broaches are operated with a hand press or hydraulic arbor press.

Item Barcode
9243060
Keyway Broach,,III,W 6mm,Cut L
 NameItemDescription
Grainger DropshipGrainger Dropship12V235Keyway Broach,,III,
UNSPSC CODESUNSPSC CODES23241602
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Keyway Broach,,III,
