SPEEDAIRE

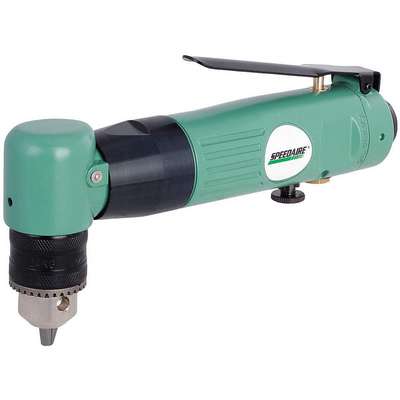

Speedaire 0.5 HP General Duty Keyed Air Drill, Right Angle Style, 3/8" Chuck Size

Hover over image to magnify
Air Drill,Keyed,3/8 In ,1500
PI_Asset_1764970
Air Drill,Keyed,3/8 In ,1500
PI_Asset_1764970

#924245-1 | Pkg Qty: 1

$149.32 pkg | $149.32 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Air Consumption
scfm
Horsepower
0.5 HP
Air Tool Body Type
Right Angle
Housing Material
Aluminum
Air Tool Drill Chuck Type
Keyed
Item
Air Drill
Avg CFM @ 15 Sec Run Time
4
Mfr. Part Number
21AA79
Bearings
Ball
Minimum Hose Size
3/8 in.
Brand
SPEEDAIRE
Overall Length
8-1/16 in.
CFM @ Full Load
16
Package Quantity
1
Chuck Size
3/8 in.
Required Pressure
90 psi
Duty
General
Reversing
Yes
Free Speed
1500 RPM
Shipping Weight
2.95 lb.
Gear Train
Planetary
Tool Weight
2-1/2 lb.
Handle Material
Aluminum
Variable Speed
No
General
Air Pressure
90 psi
Drilling Capacity in Wood
3/8 in
Bearing Design
Ball
Includes
3/8 in Chuck Key
Body Style - Air Tools
Right Angle
Max. Torque
3.3 ft-lb
Chuck Material
Metal/Plastic
Min. Torque
0 ft-lb
Drill Chuck Type
Keyed
Noise Level
86 dB
Drilling Capacity in Aluminum
3/8 in
Side to Center
13/16 in
Drilling Capacity in Cast Iron
3/8 in
Spindle Screw Size
M5
Drilling Capacity in Masonry
3/8 in
Spindle Thread Pitch
0.8 mm
Drilling Capacity in Steel
3/8 in
Spindle Thread Size
3/8"-24

Product Description

Right-angle air-powered drills have a bit-holding chuck that is oriented 90° to the tool body, so they have a slim profile for accessing tight spaces. They are commonly used for drilling in automotive and assembly tasks.
