DAKE CORPORATION

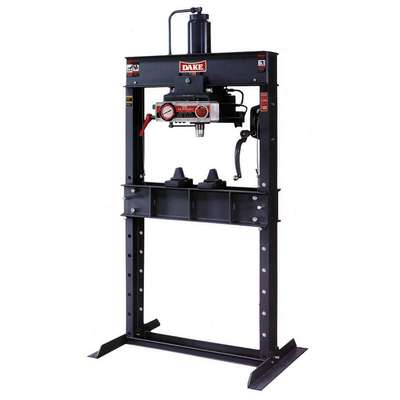

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 50 ton
Hover over image to magnify
#924229-2 | Pkg Qty: 1
Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
Base Length
43-1/2 in.
Overall Length
43-1/2 in.
Base Width
36 in.
Overall Width
36 in.
Brand
DAKE CORPORATION
Package Quantity
1
Characteristics
Heavy Duty With Self Contained Workhead
Pressure
50 tons
Cylinder
Movable
Pump
Haskel
Cylinder Stroke
10 in.
Pump Type
Air
Cylinder Type
Double Action
Ram Travel
13-3/32 in.
Design
H-Frame
Reservoir Capacity
8 qt.
Frame Capacity
50 tons
Shipping Weight
1150 lb.
Frame Type
H-Frame
Stroke
10 in.
Height with Screw Extension
87 in.
Total Height
87 in.
Hose Size
Steel Tube
Total Width
36 in.
Item
Hydraulic Press
Working Height
87 in.
Mfr. Part Number
906450
Working Width
36 in.
Overall Height
87 in.
General
Adjustable Bed
Yes
Max. Ram Advance Speed
55 in/min
Application
Pressing, Straightening, Bending, Forming, Punching, Staking and Clamping
Max. Ram Press Speed
5 in/min
Distance Between Uprights
32 3/4 in
Max. Ram-to-Table Distance
40 in
Features
Welded Channel Iron Frame, Heavy Duty with Self Contained Workhead
Min. Ram-to-Table Distance
5 in
Includes
Table Plates, V Blocks, Flat Ram Nose and V-ram Nose
Width Between Table Channels
7 1/4 in
Material - Machining
Iron
Product Description
Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 50 ton, Cylinder Type Single Acting
Item Barcode
Hydraulic Press,50 t,Air Pump,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 40F077 | Hydraulic Press,50 t, |
 | UNSPSC CODES | 27121502 | |
 | VMRS (ATA) CODES | 053-006-009 | Hydraulic Press,50 t, |
