WESTWARD

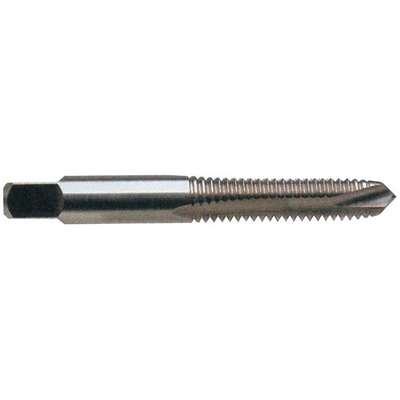

M6-1.00, Tap, Right Hand, Plug, 2 Flutes, High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#924086-5 | Pkg Qty: 1
$11.34 pkg | $11.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WESTWARD
Shipping Weight
.02 lb.
Cutting Direction
Right
Square Size
0.191 in.
Cutting Direction
Right Hand
Subgroup | Tap
Spiral Point
Finish
Uncoated
Tap Chamfer
Plug
Flutes
2
Tap Dimension Type
Metric
Item
Spiral Point Tap
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
5TWL2
Tap Size
M6
Number of Flutes
2
Tap Style
Spiral Point
Number of Pieces
1
Tap Thread Size
M6x1.00
Overall Length
2-1/2 in.
Tap Thread Type
Metric Coarse
Pack Quantity
1
Thread Direction
Right Hand
Pitch
1.00 mm
Thread Length
1 in.
Pitch Diameter Limits
D5
Thread Type
Metric Coarse
Primary Material Application
All Materials
Tolerance
3B
Series
311-81405
Type
Plug
Shank Diameter
1/4 in.
General
Application
Use with Free Running and Screw Locking Helicoil Threaded Inserts
Standards
ANSI
Class of Fit
3B
Tap Grouping
Individual
Coolant Fed
Non-Coolant Through
Thread Limit
D5
Material Grade - Machining
M2
Thread Limit / Class of Fit
D5 / 3B
Measurement System
Metric
Thread Pitch
1.00 mm
Shank Dia.
1/4 in
Thread Standard
Metric Coarse
Shank Type - Machining
Straight
Product Description
General Purpose HSS Spiral Point Taps
- For use with steel and stainless steel 30RC, aluminum, cast iron, ductile iron, and nonferrous metals
- Use for through holes in maintenance applications.
