HOBART

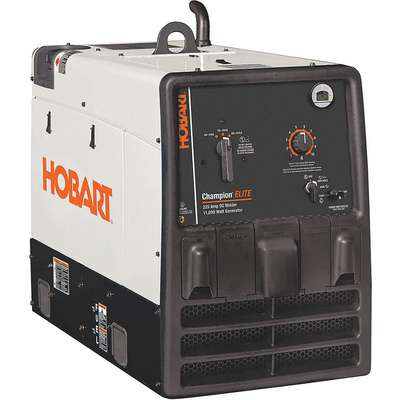

Hobart Electric, Champion Elite Gas Powered Engine Driven Welder with Kohler Engine
Hover over image to magnify
#924009-8 | Pkg Qty: 1
Pricing is subject to change without notice
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Amperage Range
40-225 A
Mfr. Part Number
500562
Brand
HOBART
Package Quantity
1
Continuous Auxiliary Power
9,000 W
Peak Auxiliary Power
10,500 W
Depth
42-19/64 in.
Phase
Single
Engine Brand
Kohler
Series
Ranger 225
Fuel Type
Gas
Shipping Weight
493 lb.
Height
29-29/32 in.
Start Type
Electric
Horsepower
23 HP
Width
21-1/2 in.
Item
Engine Driven Welder
General
Engine Model
Kohler CH730
Rated Output at Duty Cycle (Stick)
225 A @ 100%
Fuel Tank Capacity Range
10 gal – 20 gal
Stick Welding Maximum Output Current
225 A
Generator Outlet Type
14-50R, 5-20R, 6-50R
Stick Welding Minimum Output Current
40 A
HP
23 hp
Stick Welding Output @ Duty Cycle
225 A @ 25 V, 100%
Horsepower Range
15 hp – 30 hp
TIG Arc Start Feature
Lift Arc Start
Max. Amperage Range (Stick)
150 A – 300 A
Welder Model Type
with GFCI Receptacles
Open Circuit Voltage
80 V DC
Welder Type
with GFCI Receptacles
Rated Output CC/AC
225A @ 25V
Welding Mode
CC
Rated Output CC/DC
225A @ 25V
Product Description
Engine Driven Welder, Champion Elite, Start Type Electric, Rated Output CC/AC 225A @ 25V, Rated Output CC/DC 225A @ 25V, Amperage Range 40 to 225, Continuous Auxiliary Power 9,500 W, Peak Auxiliary Power 11,000 W, Single Phase, Engine Brand Kohler, Fuel Type Gas, 23 hp HP, Height 28 in, Depth 41 in, Width 20 in
