DAYTON

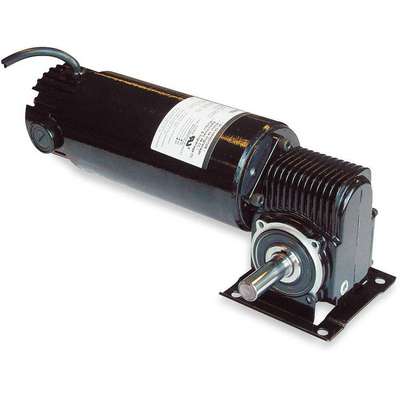

Dayton DC Gearmotor 90 VDC, Nameplate RPM: 180, Max. Torque: 27.0"-lb., Enclosure: TEN V
#923180-7Pkg Qty: 1
$597.51 pkg
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
DAYTON
Item
DC Gearmotor
Mfr. Part Number
3XA78
Package Quantity
1
Shipping Weight
12.6 lb.
Brand
DAYTON
Package Quantity
1
Item
DC Gearmotor
Shipping Weight
12.6 lb.
Mfr. Part Number
3XA78
General
Bearings
Oversized Ball
Brushes
Externally Replaceable
Enclosure
TENV
Full Load Amps
1.28 A
Full Load Torque
27.0 in.-lb.
Gear Material
Bronze Alloy Output Gear, Hardened Steel Worm
Gear Ratio
1899-12-31 10:01:00
Gear Type
Worm
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor RPM Range
151 to 200 RPM
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Type
Single Right
Gearmotor Voltage
90V DC
Gears
Worm, Hardened Steel and Output Gear Bronze Alloy
Housing Material
Die Cast Aluminum
Input HP
1/8
Insulation Class
F
Keyway Size Type
3/16 sq in x 1 in
Lubrication
Permanent Heavy Fluid Gear Oil
Max. Ambient Temp.
40 °C
Max. Torque
27 in-lb
Motor Type
Permanent Magnet DC
Mounting
All Position
Nameplate RPM
180 RPM
Overhung Load
175 lb
Phase
DC
RPM Range
151 to 200
Rear Shaft Encoder/Pulse Generator Mounting
Yes
Replacement Brushes
6YHY6
Reversible Shaft Output
Yes
Rotation
Reversible
Seals
Lip Type on input and Output Shaft
Shaft Orientation
Right Angle
Standards
C-UL Recognized, UL Recognized
Thermal Protection
None
Type
Right Angle
Voltage
90 VDC
Voltage Rating
90 VDC
Bearings
Oversized Ball
Max. Ambient Temp.
40 °C
Brushes
Externally Replaceable
Max. Torque
27 in-lb
Enclosure
TENV
Motor Type
Permanent Magnet DC
Full Load Amps
1.28 A
Mounting
All Position
Full Load Torque
27.0 in.-lb.
Nameplate RPM
180 RPM
Gear Material
Bronze Alloy Output Gear, Hardened Steel Worm
Overhung Load
175 lb
Gear Ratio
1899-12-31 10:01:00
Phase
DC
Gear Type
Worm
RPM Range
151 to 200
Gearmotor Enclosure
Totally Enclosed Nonventilated
Rear Shaft Encoder/Pulse Generator Mounting
Yes
Gearmotor Mounting Position
All Angle
Replacement Brushes
6YHY6
Gearmotor RPM Range
151 to 200 RPM
Reversible Shaft Output
Yes
Gearmotor Rotation
CW/CCW
Rotation
Reversible
Gearmotor Shaft Type
Single Right
Seals
Lip Type on input and Output Shaft
Gearmotor Voltage
90V DC
Shaft Orientation
Right Angle
Gears
Worm, Hardened Steel and Output Gear Bronze Alloy
Standards
C-UL Recognized, UL Recognized
Housing Material
Die Cast Aluminum
Thermal Protection
None
Input HP
1/8
Type
Right Angle
Insulation Class
F
Voltage
90 VDC
Keyway Size Type
3/16 sq in x 1 in
Voltage Rating
90 VDC
Lubrication
Permanent Heavy Fluid Gear Oil
Product Description
DC Gearmotor, Gearmotor Voltage 90V DC, Max. Torque 27.0 in-lb, Single Right Gearmotor Shaft Type, Nameplate RPM 180 RPM, Totally Enclosed Nonventilated Gearmotor Enclosure, All Angle Gearmotor Mounting Position, Overhung Load 175 lb, Input HP 1/8, Gear Ratio 10:1, Full Load Amps 1.28 A, Insulation Class F, None Thermal Protection, Motor Type Permanent Magnet DC, Powder Coated Gloss Black Finish, Replacement Brushes 6YHY6
