SQUARE D

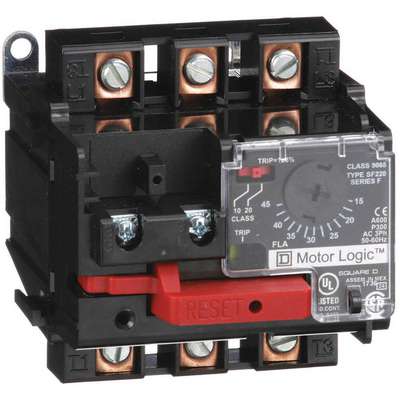

Square D Electronic NEMA Overload Relay, Current Range: 15.0 to 45.0A, NEMA Size: 2
Hover over image to magnify
#923178-5 | Pkg Qty: 1
$349.91 pkg | $349.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SQUARE D
Package Quantity
1
Current Range
15.0 to 45.0A
Sensing Method
Electronic
Depth
6.3 in.
Shipping Weight
1.31 lb.
Height
5.8 in.
Starter Type
NEMA
Item
NEMA Overload Relay
Type
NEMA
Mfr. Part Number
9065SF220
Voltage
600 VAC
Number of Poles
3
Width
5.6 in.
General
Body Depth - Relay
6.3 in
Overload Relay Current Range
15.0 to 45.0A
Body Height - Relay
5.8 in
Reset Type - Relay
Manual
Body Width - Relay
5.6 in
Separate Mounting
Yes
Features
Ground Fault Detection
Standards
UL, CSA, NOM, CE Marked
For Use With
Mfr. Class 8536 Starters
Trip Class
10/20
NEMA Size
2
Trip Class - Overload
10, 20
Overall Height - Relay
5.8 in
Use With - Contactors and Starters
Mfr. Class 8536 Starters
Product Description
Motor Logic™ Overload Relays
- 3-phase, 60/50 Hz, 600VAC 3:1 current adjustment range Class 10/20 selectable thermal protection
- Heaterless construction with adjustable full-load amps. Relays are protected against phase loss and phase imbalance. Mount separately or use to retrofit an existing Square D Type S starter. Select overload relay by full load amp current range.
Item Barcode
Ovrload Relay,15 To 45A,3P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 21AM86 | Ovrload Relay,15 to |
 | UNSPSC CODES | 39122330 | |
 | VMRS (ATA) CODES | 053-006-009 | Ovrload Relay,15 to |
