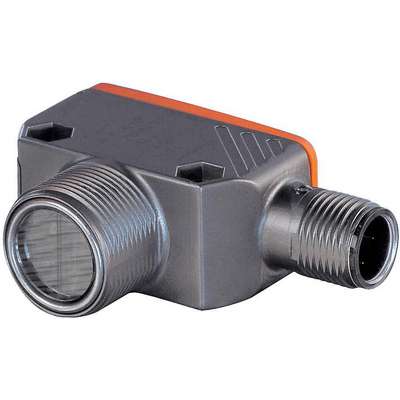

IFM 35mm Dark On Rectangular Photoelectric Sensor Receiver; Sensing Method: Through Beam Receiver
Hover over image to magnify
#923157-7 | Pkg Qty: 1
$67.81 pkg | $67.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Metal Alloy, PA, LCP, EPDM
Mfr. Part Number
OGE280
Brand
IFM
NEMA Rating
Not Rated
Cable Connection
M12
Operating Frequency
1000 Hz
Circuit Type
PNP
Operating Modes
Dark On
Contact Form
PNP
Operating Temperature Range
-2 deg. C to 6 deg. C
Depth
52 mm
Output Circuit Type
PNP
Electrical Connection
4-Pin M12 Male Connector
Output Mode
Dark-On
Height
35 mm
Power Requirement
10 to 30VDC
IP Rating
67
Sensing Method
Through Beam Receiver
Item
Photoelectric Sensor
Shape
Right Angle
Length
35.4 mm
Shipping Weight
.13 lb.
Light Source
Red LED
Style
Rectangular Photoelectric Sensor Receiver
Maximum Amps
200m
Temperature Range (Deg. F)
-13 to 140 deg. F
Maximum Load Current
200mA
Type
Through Beam Receiver
Maximum Sensing Distance
20m
Voltage Range
10-30 VDC
Maximum Sensing Distance - Rectangular Photoelectric Sensor
20.0m
Width
18 mm
General
Depth - Rectangular Photoelectric Sensor
52 mm
Output Circuit Type - Rectangular Photoelectric Sensor
PNP
Electrical Connection - Rectangular Photoelectric Sensor
4-Pin M12 Male Connector
Power Requirement - Rectangular Photoelectric Sensor
10 to 30V DC
Features
Reverse Polarity and Overload Protection, PMMA Lens
Sensing Method - Rectangular Photoelectric Sensor
Through Beam Receiver
Height - Rectangular Photoelectric Sensor
35 mm
Shape - Rectangular Photoelectric Sensor
Right Angle
Operating Mode - Photoelectric Sensor
Dark On
Standards
CCE Approval
Operating Temp. Range
-25° to 60°C
Style - Rectangular Photoelectric Sensor
Rectangular Photoelectric Sensor Receiver
Operation Mode
Dark On
Width - Rectangular Photoelectric Sensor
18 mm
Product Description
This photoelectric sensor offers long sensing ranges and easy setup. It is designed and tested to withstand industrial automation applications such as conveying, material handling, packaging, and automotive assembly. It also features a compact housing and integrated microprocessor-based electronics for high performance.
