THOMAS

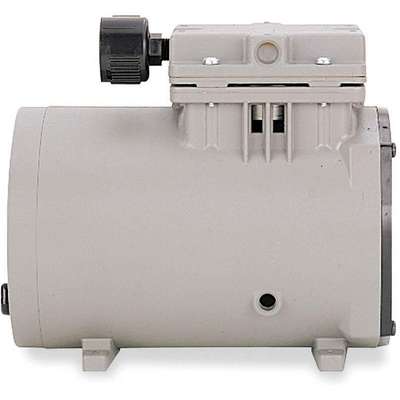

1/8 HP Piston Air Compressor/Vacuum Pump, 115VAC, 100/100 Max. PSI Cont./Int.
Hover over image to magnify
#923138-3 | Pkg Qty: 1
$408.87 pkg | $408.87 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
(F)NPT Inlet
1/4 in.
Maximum PSI Cont./Int.
100/100
(F)NPT Outlet
1/4 in.
Maximum Vacuum
25.6 in. Hg
Air Consumption
scfm
Mfr. Part Number
617CA22
Brand
THOMAS
Number of Cylinders
1
Cylinder Material
Aluminum
Overall Height
6-4/5 in.
Cylinders
1
Overall Length
8 in.
Design
Lap Joint Piston Ring
Overall Width
5 in.
Finish
Gray
Package Quantity
1
Free Air CFM @ 0 PSI
0.78
Phase
1
Free Air CFM @ 10 In. HG
0.47 in.
RPM
1750
Free Air CFM @ 30 PSI
0.51
Rating
Continuous Duty
Free Air CFM @ 50 PSI
0.37
Shipping Weight
11 lb.
Free Air CFM @ 90 PSI
0.13
Type
Piston Air
Full Load Amps
3.1
Valve
Corrosion Resistant Sandwich
Horsepower
1/8
Voltage
115 VAC
Hz
60
Warranty
2ACC9
Item
Piston Air Compressor/Vacuum Pump
Width
5 in.
Lubrication Type
Oil-Less
General
Air Tank Style
Tankless
Free Air Flow Rate
0.13 cfm
Application
Aeration, Photographic Processing, Business Machines, Packaging, Beverage Dispensing and Various OEM, Requiring Intermittent and Continuous Duty
HP
1/8 hp
Compressor Material
die cast aluminum
Maximum Continuous Pressure
100 psi
Compressor Pump Style
Rocking
Maximum Intermittent Pressure
100 psi
Free Air CFM @ 0 In. Hg
0.78
Maximum Pressure Cont/Int
100 psi / 100 psi
Free Air CFM @ 100 PSI
0.07
Output Power
0.125 hp
Free Air CFM @ 20 In. Hg
0.16
Piston Type
WOB-L
Free Air CFM @ 20 PSI
0.59
Sound Rating
63 dBA @ 60 psi
Free Air CFM @ 40 PSI
0.42
Standards
UL
Product Description
Unit features rugged flexible piston cup and shaded-pole motor with high-torque start windings. Corrosion-resistant sandwich valve stops foreign particles from lodging on valve seats. Aluminum cylinder heads and pistons.
- Continuous-duty rated
- Quiet-running
